Hi folks , I have a T38. How do you guys install your echo sounder transducers on your T38,s.
I was thinking of just strapping it on to the back of one of the side tubes. What do you think ?
Attaching Echo sounder Transducer
-
ChrisParish
- Supporting Member
- Posts: 2049
- Joined: 23 May 2018, 15:30
- Boat Make: Bombard Aerotec 380
- Outboard: Suzuki DF20A
- MMSI Number: 235916094
- Location: Poole
- Has thanked: 123 times
- Been thanked: 636 times
Re: Attaching Echo sounder Transducer

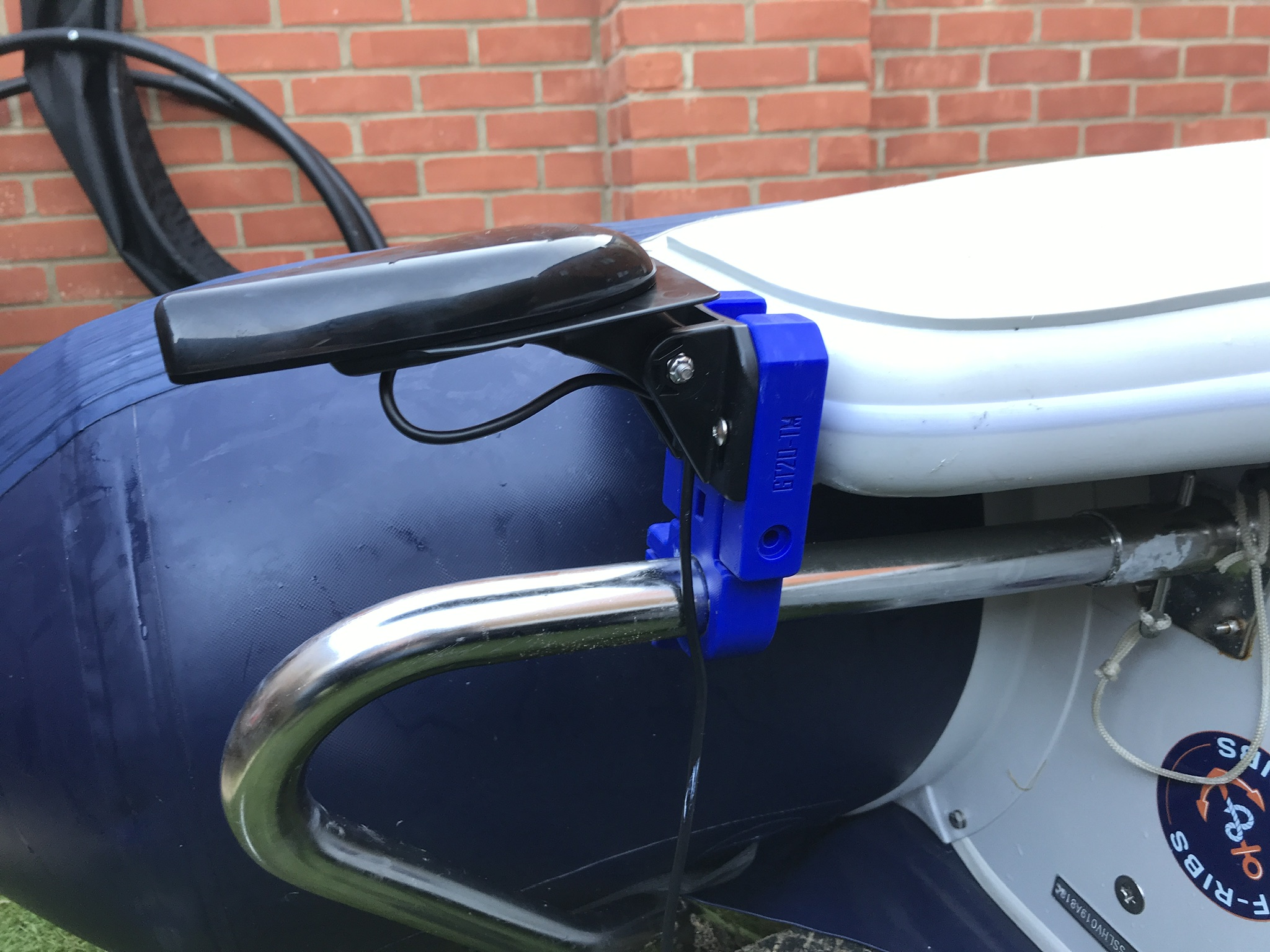

@The Hobbit straps his under the tube. @Mitch and I both fasten ours to the launch wheels. Do you have launch wheels on yours? I have a 3D printed bracket which I use.
- Attachments
-
-
Not a complete idiot - some parts are missing.
-
Cat10
- Active Member
- Posts: 51
- Joined: 25 Sep 2018, 10:48
- Boat Make: Honwave T38
- Outboard: Honda 15BF
- MMSI Number: 10
- Location: Oxford
- Has thanked: 0
- Been thanked: 1 time
Re: Attaching Echo sounder Transducer
Brilliant, just what I was looking for.
I have got launch wheels and I like the look of that bracket,
did you make it or buy it ?
Are there any pros and cons for strapping the transducer to the tubes or mounting it like you have it on the wheels ?
Many thanks
I have got launch wheels and I like the look of that bracket,
did you make it or buy it ?
Are there any pros and cons for strapping the transducer to the tubes or mounting it like you have it on the wheels ?
Many thanks
-
ChrisParish
- Supporting Member
- Posts: 2049
- Joined: 23 May 2018, 15:30
- Boat Make: Bombard Aerotec 380
- Outboard: Suzuki DF20A
- MMSI Number: 235916094
- Location: Poole
- Has thanked: 123 times
- Been thanked: 636 times
Re: Attaching Echo sounder Transducer
I made the bracket. What transducer do you have? It might be suitable for yours.
Pros and cons - strapping to the tube can be easier, depending on the transducer as some have a bracket for strapping them to the bottom of a trolling motor, but you are more likely to catch it on the bottom if you beach the boat, and it can’t flip up out of the way.
Using a bracket on the launch wheels makes it less prone to getting knocked, but need a bracket.
@Mitch uses a lump of wood and some pipe clips.
Pros and cons - strapping to the tube can be easier, depending on the transducer as some have a bracket for strapping them to the bottom of a trolling motor, but you are more likely to catch it on the bottom if you beach the boat, and it can’t flip up out of the way.
Using a bracket on the launch wheels makes it less prone to getting knocked, but need a bracket.
@Mitch uses a lump of wood and some pipe clips.
Not a complete idiot - some parts are missing.
-
Froglet
- Advanced Member
- Posts: 269
- Joined: 15 Apr 2018, 13:32
- Boat Make: Honwave T38 ie1
- Outboard: Mariner 25hp 2s, Yamaha 6hp 4s
- MMSI Number: 235918142
- Location: South Bucks
- Has thanked: 42 times
- Been thanked: 91 times
Re: Attaching Echo sounder Transducer
I shamelessly plagiarised @Mitch and went the lump of wood route.
I used a couple of bits of waste pipe, cut along their length, then shoved inside one another. The outer one is screwed to the wood. They were just the right diameter to give a firm grip on the launching wheel leg, but I have since added a pair of hose clamps to grip even more. I found that at top speed there was enough force on the transducer that it would rotate on the leg so it wasn't pointing straight down. The hose clamps cured that.
I used a couple of bits of waste pipe, cut along their length, then shoved inside one another. The outer one is screwed to the wood. They were just the right diameter to give a firm grip on the launching wheel leg, but I have since added a pair of hose clamps to grip even more. I found that at top speed there was enough force on the transducer that it would rotate on the leg so it wasn't pointing straight down. The hose clamps cured that.
-
Cat10
- Active Member
- Posts: 51
- Joined: 25 Sep 2018, 10:48
- Boat Make: Honwave T38
- Outboard: Honda 15BF
- MMSI Number: 10
- Location: Oxford
- Has thanked: 0
- Been thanked: 1 time
Re: Attaching Echo sounder Transducer
Hi Chris, I have a Garmin Striker Echo sounder.ChrisParish wrote: ↑27 May 2020, 20:12@The Hobbit straps his under the tube. @Mitch and I both fasten ours to the launch wheels. Do you have launch wheels on yours? I have a 3D printed bracket which I use.
The transducer looks similar to yours.
Did you make the bracket or buy it.
I would be more than happy to pay you to make one for me if you print them yourself.
Cheers
Phil.
-
ChrisParish
- Supporting Member
- Posts: 2049
- Joined: 23 May 2018, 15:30
- Boat Make: Bombard Aerotec 380
- Outboard: Suzuki DF20A
- MMSI Number: 235916094
- Location: Poole
- Has thanked: 123 times
- Been thanked: 636 times
Re: Attaching Echo sounder Transducer
My transducer is for a striker as well. I will gladly print one for you if you like.
Not a complete idiot - some parts are missing.
-
jonsy
- Active Member
- Posts: 48
- Joined: 06 Jun 2019, 12:32
- MMSI Number: 10
- Location: weymouth
- Has thanked: 0
- Been thanked: 1 time
Re: Attaching Echo sounder Transducer
Fish Finder Mounts .com
5ah 4.5 Strap-On Inflatable Boat Mount w/96" Strap
Subtotal
$139.85
Shipping
England, United Kingdom
$58.00
Total
$197.85 = 160.00 pounds
5ah 4.5 Strap-On Inflatable Boat Mount w/96" Strap
Subtotal
$139.85
Shipping
England, United Kingdom
$58.00
Total
$197.85 = 160.00 pounds
-
ChrisParish
- Supporting Member
- Posts: 2049
- Joined: 23 May 2018, 15:30
- Boat Make: Bombard Aerotec 380
- Outboard: Suzuki DF20A
- MMSI Number: 235916094
- Location: Poole
- Has thanked: 123 times
- Been thanked: 636 times
Re: Attaching Echo sounder Transducer
That’s expensive!
Not a complete idiot - some parts are missing.
-
Cat10
- Active Member
- Posts: 51
- Joined: 25 Sep 2018, 10:48
- Boat Make: Honwave T38
- Outboard: Honda 15BF
- MMSI Number: 10
- Location: Oxford
- Has thanked: 0
- Been thanked: 1 time
Re: Attaching Echo sounder Transducer
Hi Chris, did you get my message?ChrisParish wrote: ↑30 May 2020, 04:14My transducer is for a striker as well. I will gladly print one for you if you like.
Cheers
Phil
