Bayliner Trophy 2052

Post by Andy B » 16 Oct 2018, 22:06

Sold the Mariah Bowrider back in the spring as i'd kind'a grown out of it.
Decided that i wanted something with a few more creature comforts.... (the wife wants a loo :roll: )
With age comes a different set of priorities, it no longer seems so important to go everywhere at 50+ mph :lol:
The search was on for some kind of walk around Sports Fisher.

I've been doing plenty of wheeling and dealing in the last couple of years and had managed to get together a reasonable budget.
The plan was to find myself a decent "Karnic 2050" budget around £17k. I didn't want another project and was looking for a boat with plenty of service history and a turn key package.

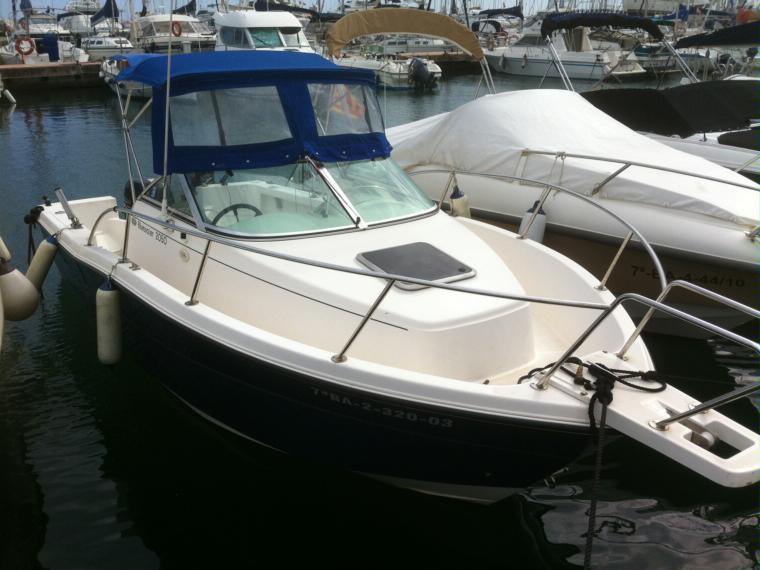

Karnic 2050

After several months of searching and a few over enthusiastic sellers with unrealistic expectations! :roll: I decided to widen my search???

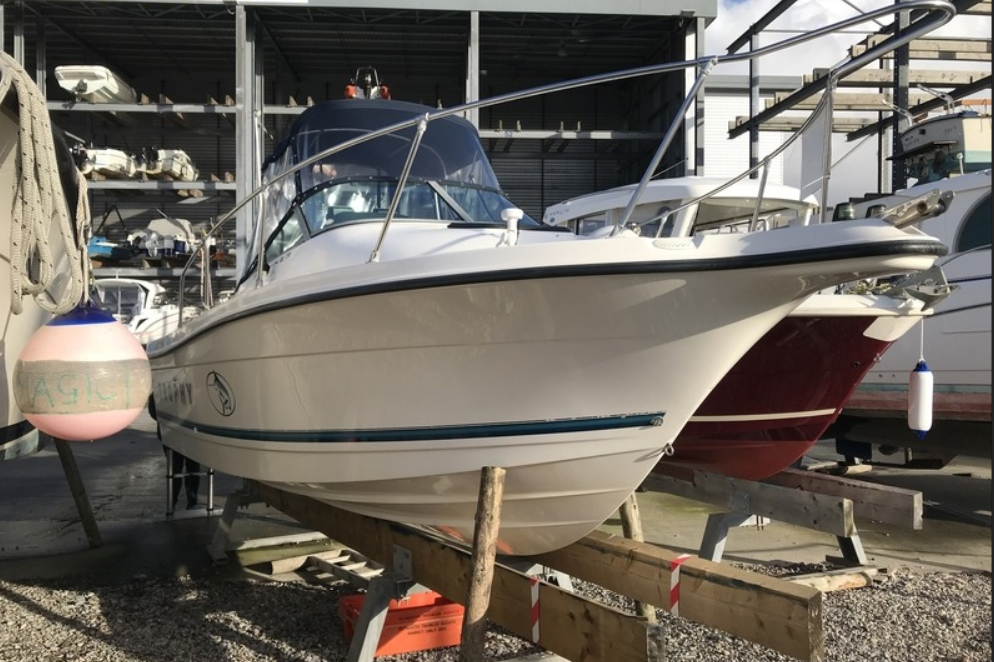

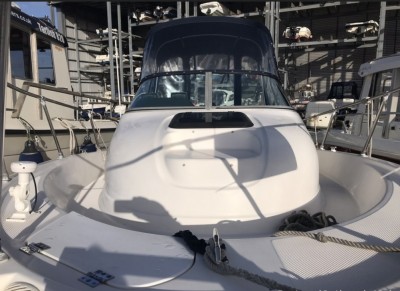

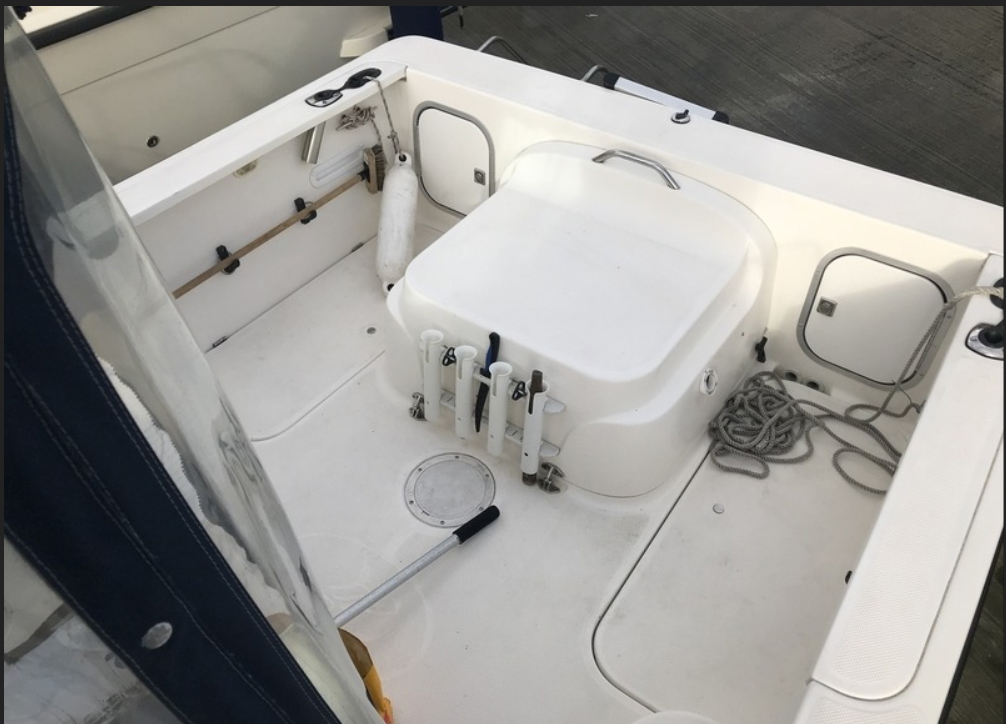

Eventually a 2052 Trophy was forwarded to me to view.

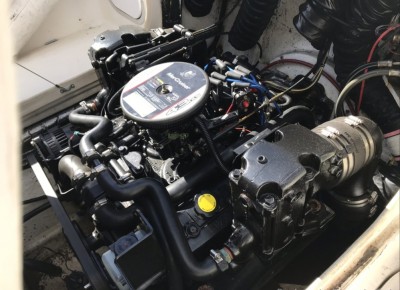

The boat had two owner from new and had spent it's whole life in drystack, the hull was still original gelcoat not anti fouled, a new engine fitted in 2013 (4.3L V6 Mercruiser) also a whole folder of service receipts and owners literature going back to the original bill of sale.
The downside was that it had been left unused for the last couple of years due to the owners failing heath and required attention...

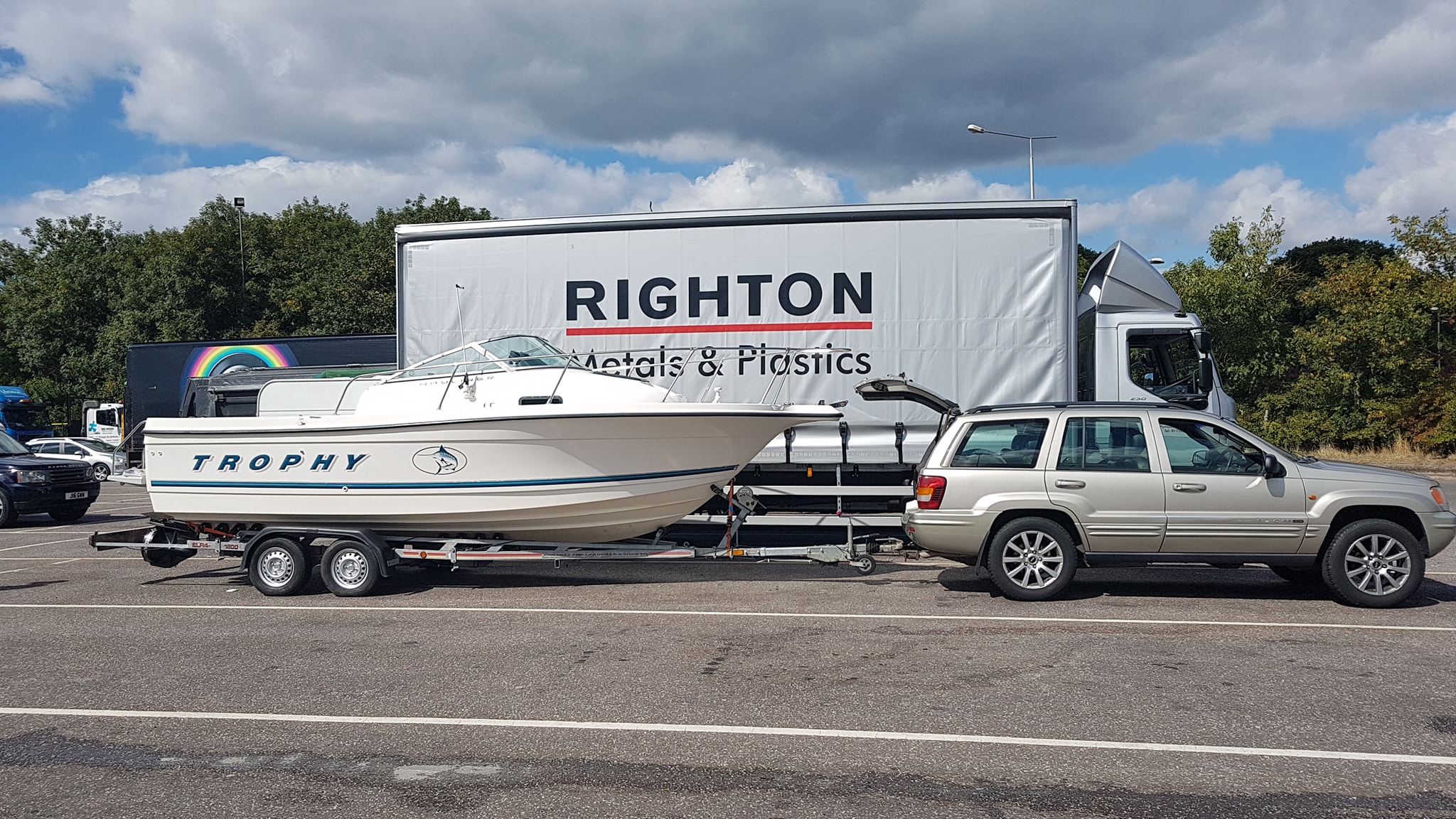

Now originally the idea was that i wasn't looking for a project and this boat did have a few issues, but an agreement was made over the price and before i knew it i was off to the west country to collect my latest impulse buy..... :roll:
I will be going over the boat through the winter months making sure all's "ship shape" for next year.
If anyone's interested i will post up my progress, but i understand that this is a Sibbing Forum...
These users thanked the author Andy B for the post:
Si Crowe (24 Oct 2018, 12:39)

chris moody Great Britain
Mega Poster, I Really Need To Get Out More !
Posts: 2348
Joined: 24 Mar 2015, 12:19
Boat Make: Takacat 3.4
Outboard: Tohatsu 9.8 2s
MMSI Number: 235900806
Location: Braunston
Has thanked: 146 times
Been thanked: 443 times

Re: Bayliner Trophy 2052

Post by chris moody » 17 Oct 2018, 07:12

Congratulations on the new purchase. I'd like to see updates as you get her ready for next season.

Does she have any berths for an overnight trip away?
Chris Moody
Taka Tigga: Takacat 3.4 Tohatsu 9.8

Mitch England
Veteran Member
Posts: 575
Joined: 16 May 2017, 16:31
Boat Make: Honwave T38-ie2
Outboard: Mercury 20HP Fourstroke
MMSI Number: 10
Location: Swindon
Has thanked: 118 times
Been thanked: 113 times

Re: Bayliner Trophy 2052

Post by Mitch » 17 Oct 2018, 08:43

Smashing looking boat Andy, bet your pleased with that, wish I had one of those, I was looking at something like that but it was the mooring fees that put me off.

warder54 Great Britain
Super Poster
Posts: 645
Joined: 12 Aug 2016, 08:32
Boat Make: F-Rib 360 + Smartwave 480
Outboard: Yam 60 efi
Toh 5 4 st
Toh 20 efi
MMSI Number: 10
Location: Montrose -Scotland
Has thanked: 23 times
Been thanked: 148 times

Re: Bayliner Trophy 2052

Post by warder54 » 17 Oct 2018, 14:39

Mmmm, drool, boat porn. Nice boat!
Why am I here - I should be in my boat fishing!!
Mike Elliott

User avatar
Martin England
Supporting Member
Posts: 5789
Joined: 30 Dec 2014, 13:05
Boat Make: F-Rib 3.75 - Special
Outboard: Suzuki Smoker DT9 (1978) , Suzuki DF20 efi
MMSI Number: 123456789
Location: Huddersfield - West Yorkshire
Has thanked: 1416 times
Been thanked: 782 times
Contact:

Re: Bayliner Trophy 2052

Post by Martin » 18 Oct 2018, 08:19

That looks nice Andy, yes please do document it all as you go through the process, it’ll make a great read.
In years to come I expect that’ll be the sort of thing I go for, life changes eh :lol:
F-RibsAndSibs.Com.... :whistle
Because it's a big old WWworld out there :mrgreen:

PeterM
Super Poster
Posts: 841
Joined: 20 Jul 2015, 14:53
Location: Bournemouth & Poole
Has thanked: 70 times
Been thanked: 254 times

Re: Bayliner Trophy 2052

Post by PeterM » 18 Oct 2018, 15:14

Nicely done ( not sure how I missed this purchase) . Been out in a mates Proline - much the same concept and layout and works well for 2 . Trophy seems a little bigger than his Proline - really practical and fun as well . You'll have that singing along in no time!

Andy B England
Mega Poster, I Really Need To Get Out More !
Posts: 1825
Joined: 03 Sep 2015, 17:10
Location: lost in space
Has thanked: 78 times
Been thanked: 252 times

Re: Bayliner Trophy 2052

Post by Andy B » 18 Oct 2018, 18:03

chris moody wrote: ↑
17 Oct 2018, 07:12
Congratulations on the new purchase. I'd like to see updates as you get her ready for next season.

Does she have any berths for an overnight trip away?

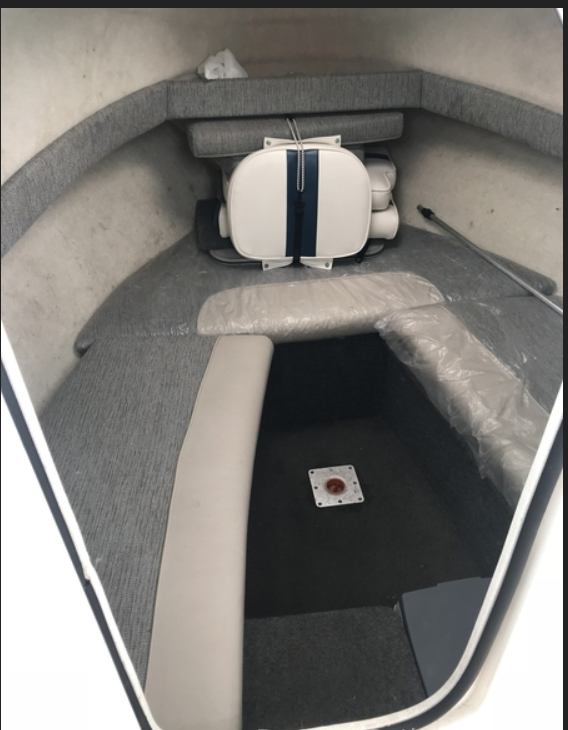

Yes Chris, she'll comfortably sleep 2 in the cuddy.
It's deceptively big bellow decks, if not a little basic, but the real reason for buying this sort of boat is so that i have cover and somewhere to dry off and warm up. And with it being inboard there's the option to plumb in heating. It doesn't have it at the moment, but it's one of the things i want to add...
Will i overnight in it? Probably not!

Andy B England
Mega Poster, I Really Need To Get Out More !
Posts: 1825
Joined: 03 Sep 2015, 17:10
Location: lost in space
Has thanked: 78 times
Been thanked: 252 times

Re: Bayliner Trophy 2052

Post by Andy B » 18 Oct 2018, 19:09

Martin wrote: ↑
18 Oct 2018, 08:19
That looks nice Andy, yes please do document it all as you go through the process, it’ll make a great read.
Ok,
Well as stated in the OP i bought this boat on the understanding that it did require some work.
And first thing that's going to get my attention is the outdrive.
The engine may have been changed in 2013, but the outdrive is as old as the boat! (1999)
And although i have service receipts for work done, it wasn't done by me...

The outdrive is a Mercruiser Alpha 1 Generation 2
Fortunately or Unfortunately, depending on your point of view :roll: (we have history!) :Boxsmile
And I know of a couple of common issues with this drive...

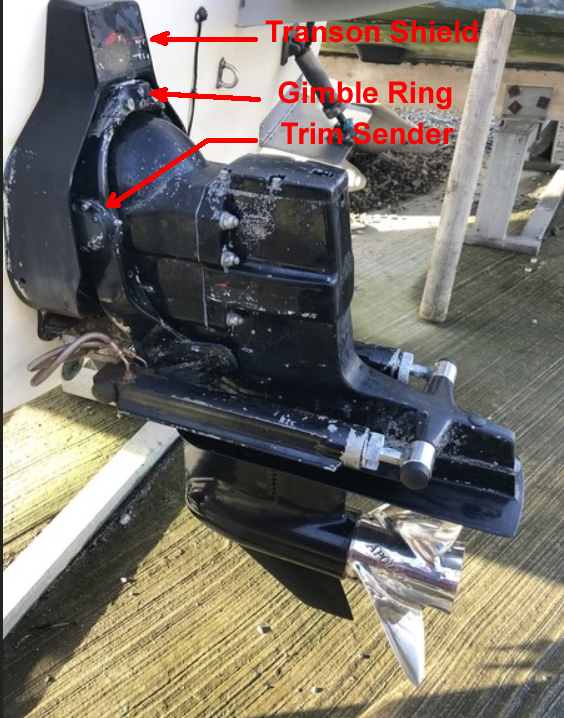

I know for a fact that the trim senders that are mounted on the hinge pins are knackered!
This is one of those jobs that sounds simple, but infact is a right pain because the the leg has to be removed to replace the senders.
The wires pass through the transom shield.
The transom Shield is the bit that's actually bolted to the boat and the drive is fitted to it via a gimble ring.
I will explain better as i go through....

Also there is an oil fitting that goes through the transom shield.
This transfers gearbox oil and is connected at one end to the drive and the other end to an expansion tank above the engine.
This fitting, for some ridiculous reason is made of plastic and over time becomes brittle and can break!
Again this isn't the easiest of jobs but will be replaced while i have the drive off.

So, a couple of extra jobs that will be done while i service the outdrive.
Job List
Pressure test seals, Oil, water pump, change the bellows, inspect the gimble bearing and replace the anodes.
And while i'm at it I will treat it to a new coat of paint... ;-)

Andy B England
Mega Poster, I Really Need To Get Out More !
Posts: 1825
Joined: 03 Sep 2015, 17:10
Location: lost in space
Has thanked: 78 times
Been thanked: 252 times

Re: Bayliner Trophy 2052

Post by Andy B » 18 Oct 2018, 19:14

Mitch wrote: ↑
17 Oct 2018, 08:43
Smashing looking boat Andy, bet your pleased with that, wish I had one of those, I was looking at something like that but it was the mooring fees that put me off.
Im not a rich man, but somethings are worth it........I hope :roll:
These users thanked the author Andy B for the post:
PeterM (18 Oct 2018, 20:20)

User avatar
Martin England
Supporting Member
Posts: 5789
Joined: 30 Dec 2014, 13:05
Boat Make: F-Rib 3.75 - Special
Outboard: Suzuki Smoker DT9 (1978) , Suzuki DF20 efi
MMSI Number: 123456789
Location: Huddersfield - West Yorkshire
Has thanked: 1416 times
Been thanked: 782 times
Contact:

Re: Bayliner Trophy 2052

Post by Martin » 18 Oct 2018, 22:22

Is the trim/tilt all electric Andy or is it hydraulic ?
