Mounting an Auxiliary....Ooooerr!

Post by harrison » 03 Feb 2020, 19:03

Bit of a sticky subject this, some love them while others hate them. However, been asked about the aux. on another thread, so here goes.

As a just in case/peace of mind scenario we tend to carry one as often out alone and the only boat on the water. To be honest not too worried on mechanical engine failure as such, but more the risk of hitting prop, fouling on lines etc.

I acknowledge the best place to carry any aux is on the transom and all ready to be deployed at a moments notice. However, hanging of the back bouncing around all day at speed in swell and chop gives them a hard life, and we’re also often towing so not practical for us.

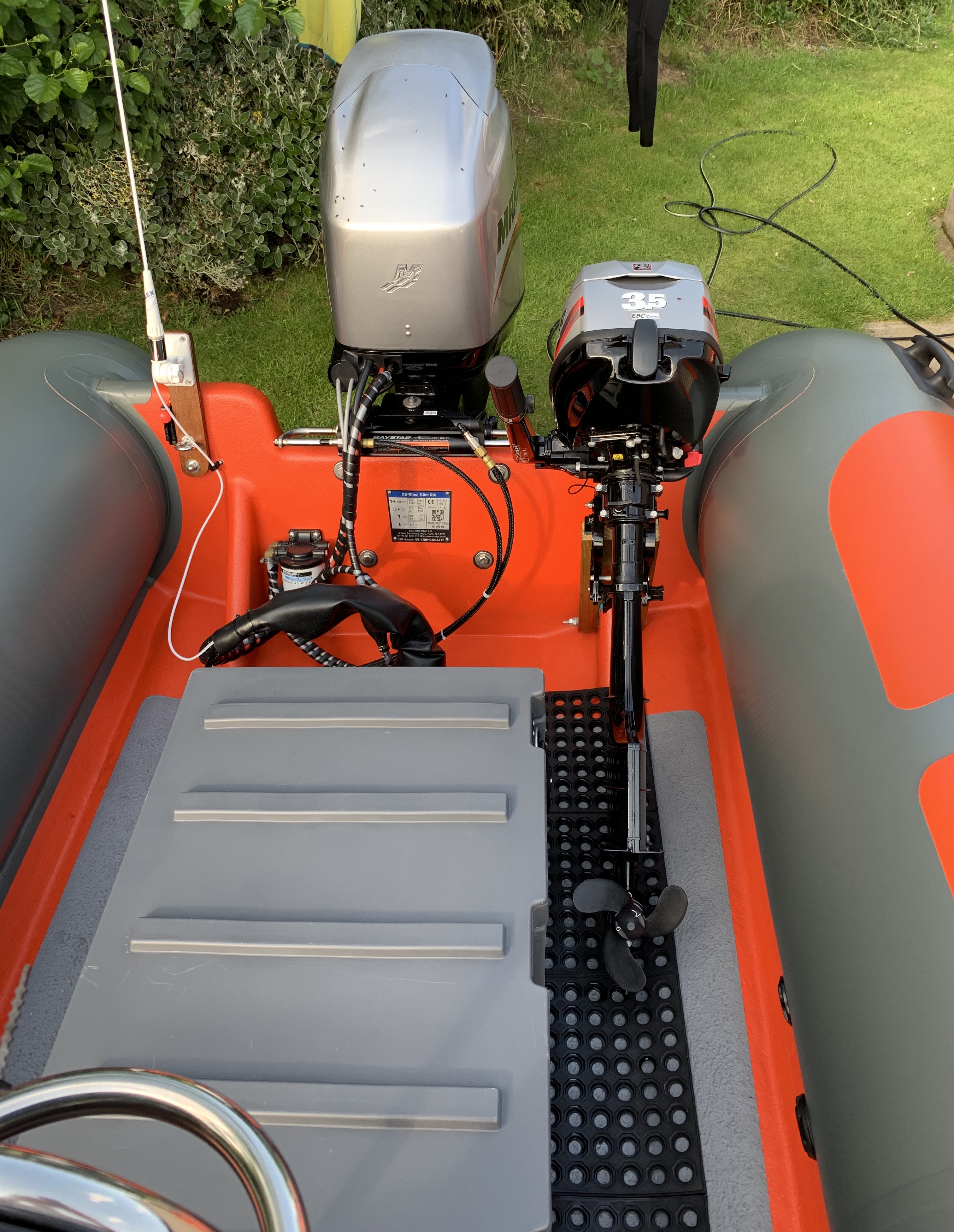

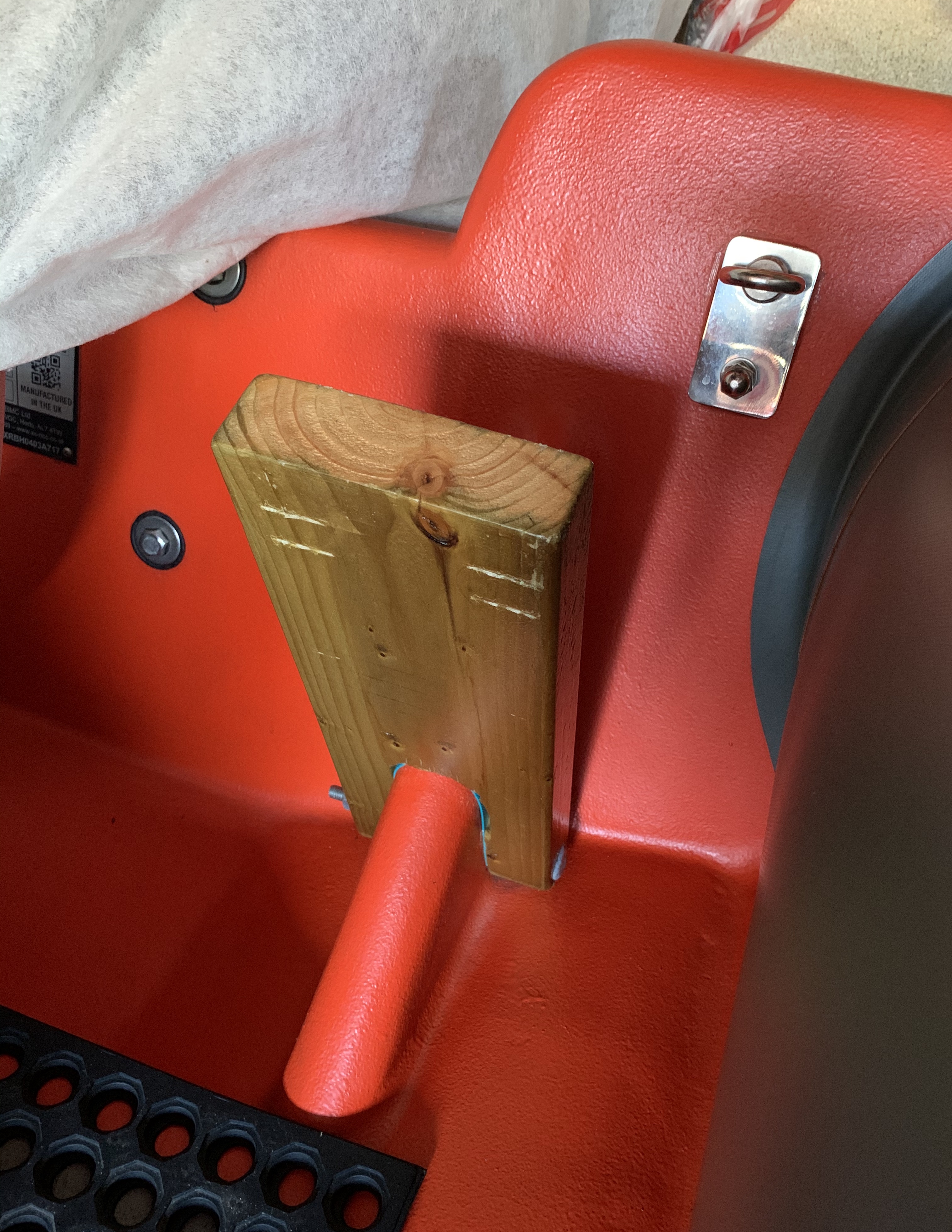

As a solution we carry our little 3.5 long shaft aux. inboard clamped to a timber yolk shaped pad 400 x 145 x 44mm, bolted through the transom knee brace. No need to drill the knee as utilised an existing drain hole. Only knocked up as a quick prototype out of an off-cut, it seems to work ok.

At 18kg the motor is reasonably easy to lift and attach to transom, depending on sea state, admittedly. In use we lock in straight ahead position and steer using main as a rudder...still just get full lock. Max speed is 5/6knots.

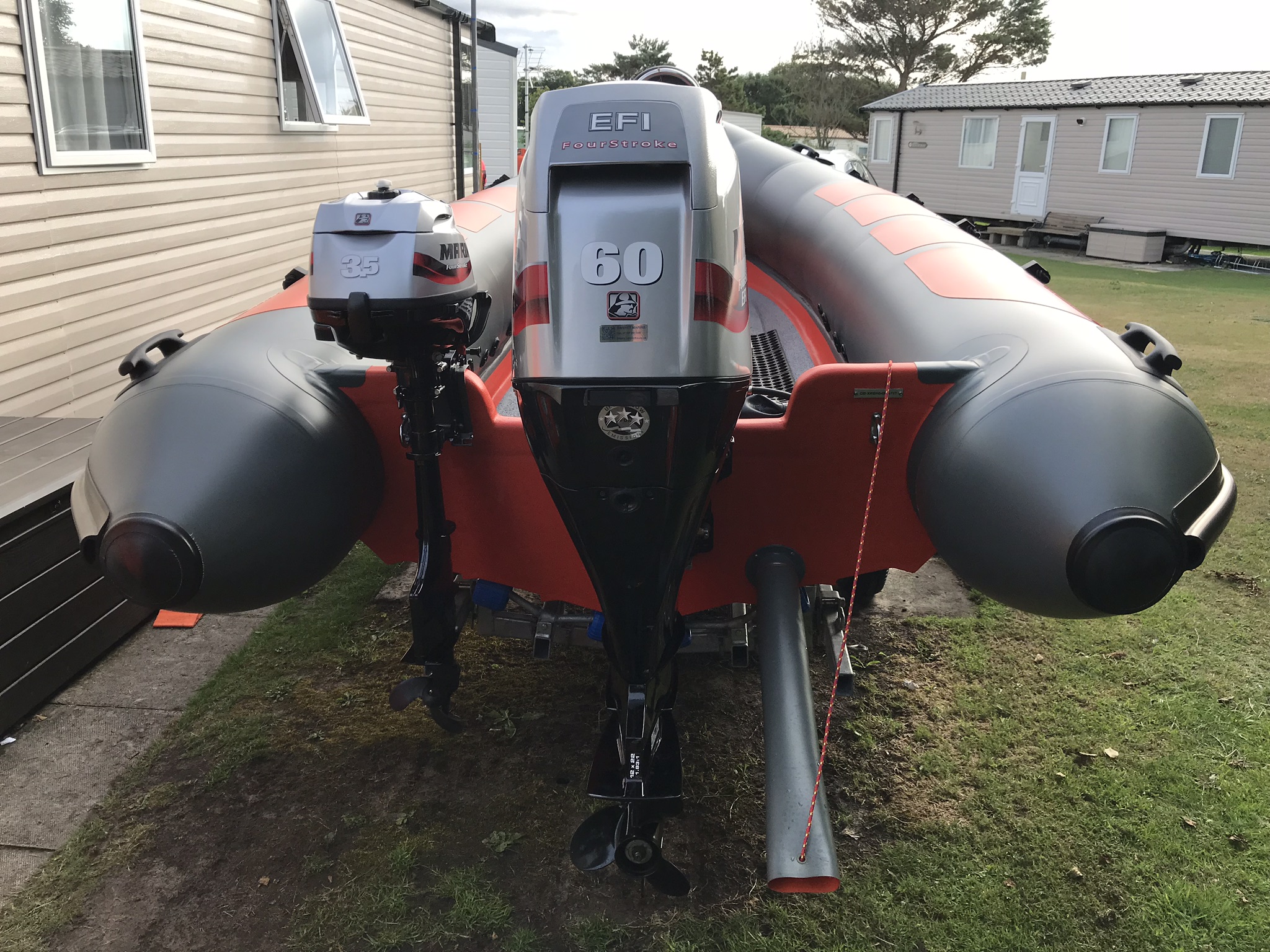

Matching pair....sad or what!
These users thanked the author harrison for the post (total 2):
sonny1 (03 Feb 2020, 19:08) • Gazzago (20 Feb 2020, 21:58)
harrison

'The Beatings Will Continue Until Morale Improves'

sonny1 England
Super Poster
Posts: 864
Joined: 29 Mar 2019, 17:29
Boat Make: xs 515
Outboard: mercury f60 elpt
MMSI Number: 232027436
Location: hitchin ,herts
Has thanked: 709 times
Been thanked: 204 times

Re: Mounting an Auxiliary....Ooooerr!

Post by sonny1 » 03 Feb 2020, 19:11

clever but very simple , thanks ian

beerbelly Great Britain
Advanced Member
Posts: 288
Joined: 19 Jul 2015, 22:00
Boat Make: plastimo ms310 humber5.5
Outboard: mercury 8hp and now a mariner 115 ct
MMSI Number: 10
Location: Teeside - U.K
Has thanked: 7 times
Been thanked: 42 times

Re: Mounting an Auxiliary....Ooooerr!

Post by beerbelly » 10 May 2020, 09:51

5 or 6 knts seams to be the going rate for aux outboards on this size of rib. I had a 4hp aux on my valiant and that was exactly the same interestingly I could back off to around half throttle before it started slowing so maybe that's the max displacement speed of our ribs.
just before the lockdown I bought a 5hp mercury 4 stroke that's the same single cyl 123cc as the 4hp and I intended to paint the cowl and fit the newer decals to match my 100hp main but as I am changing that to a new mariner 115 ill be marinizing the little mercury and painting the cowl silver with mariner decals (there the same outboard anyway)

User avatar
Martin England
Supporting Member
Posts: 5789
Joined: 30 Dec 2014, 13:05
Boat Make: F-Rib 3.75 - Special
Outboard: Suzuki Smoker DT9 (1978) , Suzuki DF20 efi
MMSI Number: 123456789
Location: Huddersfield - West Yorkshire
Has thanked: 1416 times
Been thanked: 782 times
Contact:

Re: Mounting an Auxiliary....Ooooerr!

Post by Martin » 10 May 2020, 12:44

I think it’s a great idea and I really don’t get why it’s a sticky subject... certainly not on here as far as I’m aware or hope :o

Great post, great idea and thanks for sharing.

Martin :cheers
F-RibsAndSibs.Com.... :whistle
Because it's a big old WWworld out there :mrgreen:
