With recent changes, I'm finally getting my engine and boat combo tweaked and will finalize the best prop pitch in aluminum for the setup. I want a general performance balance between hole shot and top speed. Once done, and I know the best pitch for aluminum, I'd like to purchase a stainless steel version. My question is whether or not I should stay with the same pitch once I change over to steel as it applies to small outboard engines?
Prop Material Specifically for Small Outboards
-
9-R
- Super Poster
- Posts: 932
- Joined: 12 Feb 2016, 13:56
- Boat Make: Boston Whaler Montauk 170
- Outboard: Mercury 90hp EFI
- Location: The Republic of Texas
- Has thanked: 204 times
- Been thanked: 122 times
Prop Material Specifically for Small Outboards
I know - not again!
I'm not looking for general answers but specifics from experience. Not from what others have said or assumed but strictly from experiences from anyone who has tried and tested between Aluminum vs Stainless Steel. Not looking at impact, repair feasibility or wear resistance, only performance differences.
With recent changes, I'm finally getting my engine and boat combo tweaked and will finalize the best prop pitch in aluminum for the setup. I want a general performance balance between hole shot and top speed. Once done, and I know the best pitch for aluminum, I'd like to purchase a stainless steel version. My question is whether or not I should stay with the same pitch once I change over to steel as it applies to small outboard engines?
With recent changes, I'm finally getting my engine and boat combo tweaked and will finalize the best prop pitch in aluminum for the setup. I want a general performance balance between hole shot and top speed. Once done, and I know the best pitch for aluminum, I'd like to purchase a stainless steel version. My question is whether or not I should stay with the same pitch once I change over to steel as it applies to small outboard engines?
Wrote a note said, 'back in a minute'. Bought a boat and I sailed off in it.
- mattswan2512
- Mega Poster, I Really Need To Get Out More !
- Posts: 1758
- Joined: 13 Jul 2015, 10:34
- Boat Make: F-Rib 330
- Outboard: Mercury 15hp ss 2 smoker.
- Location: Sunny southampton
- Has thanked: 95 times
- Been thanked: 118 times
Re: Prop Material Specifically for Small Outboards
I read everywhere if you go for a vengeance perfomance prop for example due to blade design steel will cause a 1 pitch increase over aluminium even tho they both state to be the same pitch...... im not very clued up so cant confirm but i read this alot!!!
Life is like a chocolate bar........
If you hold onto it for too long u get covered in sh☆t so......
live a life you will remember, not a life full of untested dreams.
If you hold onto it for too long u get covered in sh☆t so......
live a life you will remember, not a life full of untested dreams.
-
stigoftd
- Active Member
- Posts: 49
- Joined: 12 Aug 2015, 22:00
- Boat Make: tohatsu 4mtr rib. 2.8 sib
- Outboard: suzuki 30
mariner 15 - Location: devon
- Has thanked: 4 times
- Been thanked: 3 times
Re: Prop Material Specifically for Small Outboards
What do you call a small outboard - and why do you want to go through the exspense of ss ?
on a small sib - rib i cant see any advantage of having a ss prop
on a small sib - rib i cant see any advantage of having a ss prop
- Paul
- Mega Poster, I Really Need To Get Out More !
- Posts: 3056
- Joined: 30 Dec 2014, 21:46
- Boat Make: Mercury Ocean Runner 420
- Outboard: Mariner F40ELPT, 3.5 Tohatsu smoker
- MMSI Number: 235915479
- Location: Bracknell, Berkshire
- Has thanked: 459 times
- Been thanked: 356 times
Re: Prop Material Specifically for Small Outboards
Martin was at the same point as yourself and after suffering some damage to his aluminium prop investigated the subject
I'll leave Martin to give his comments but as far as I can remember it was a very small gain after all his homework fitting a SS prop
His biggest gain was fitment of a doe-fin which you are already playing around with and TBH with your setup, family, gear with a 20hp achieving 20mph is at the top of your game IMO.
If you desire more speed it's a slippery hull or more hp I'd say
I'll leave Martin to give his comments but as far as I can remember it was a very small gain after all his homework fitting a SS prop
His biggest gain was fitment of a doe-fin which you are already playing around with and TBH with your setup, family, gear with a 20hp achieving 20mph is at the top of your game IMO.
If you desire more speed it's a slippery hull or more hp I'd say
-
Martin
- Supporting Member
- Posts: 5789
- Joined: 30 Dec 2014, 13:05
- Boat Make: F-Rib 3.75 - Special
- Outboard: Suzuki Smoker DT9 (1978) , Suzuki DF20 efi
- MMSI Number: 123456789
- Location: Huddersfield - West Yorkshire
- Has thanked: 1416 times
- Been thanked: 782 times
- Contact:
Re: Prop Material Specifically for Small Outboards
Hiya 9-R, Sorry for my late response.
As paul has said, my Suzuki had an ally prop. It was severely dinked so I looked into a replacement.
Peter B (Paul B's father) had a stainless prop on his outboard, and advised me about the slight speed increase, so I dug deep to find the answer
Basically from what I remember, The ally props, although a good all rounder and cheaper than the stainless are somewhat susceptible to flex when under speed/load.
The stainless steel props wont flex like the ally, they give a cleaner cut into the water and a far better grip on exit. A standard sized swap to stainless in my opinion is a worthy upgrade, you'll immediately notice a drop in vibration and you should see an increase in top end speed.
I went up a pitch as my WOT (Wide Open Throttle) reading allowed the drop in rpm whilst staying in the manufactures advised spec.
The advisory figures are 1" further forward per inch increase in propeller pitch per revolution. So in theory, Two props of the same diameter.... a prop with a pitch of 10 will advance your boat one inch further per prop revolution apposed to a prop with a pitch of nine.
You will loose approx. 200rpm per pitch increase or gain 200rpm at WOT opposite if going down a pitch
A lower pitch will give you a faster hole shot, but a loss of top end speed. A higher pitch will give you a better top end speed, but a slower hole shot...
Can you equal the loss of holeshot by replacing the ally prop with a stainless...? TBH, I'd need to try that one out.
I found the Honwave, as all inflatables go sky high if you hole shot, totally impractical in my opinion...

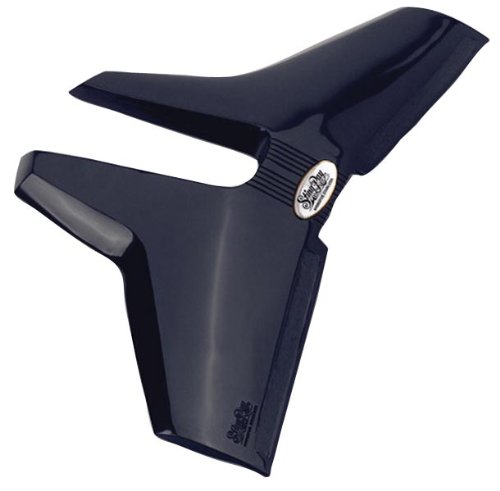

So that's when the Hydrofoil comes into play.
To offer my experiences,
I bought a Solas Saturn Stainless 3x9.25x10. I'd suggest it gave me a 3-4 knots increase over the old standard 3x9.25x9 ally prop. However, paired up with the Stingray Junior, I've lost some of that top end but got a much more satisfying boat. It's up on the plane in no time, at much lower speeds, has deffo helped with the mpg, and no more highly annoying skyward bow under holeshot.
Take a look at the "2 Go To Play" thread and see the difference in how the two Honwaves with the same outboards ride completely differently. Yes my 3.8ie is slightly longer and wider, but the difference is dramatic in slight chop with the Stingray hydrofoil. A much more pleasant ride, no pointing to the sky, nowhere near as much bounce, on a whole.... A lot better !
Here's how it looks...
Figures & Speed....
Honwave (Floppy Floor) T38ie weighs in at 48kg
Suzuki DF15 @ 44KG
Lightweight Me @ 85KG + Whatever heavy gear I'm wearing
Fuel aboard, Anchor, etc... maybe 20KG
Top ever speed registered...
23.4 knots via Navionics GPS, Somewhere between Lismore to Benderloch (West Coast of Scotland) Hope that helps, and I haven't sent you to sleep
Martin
As paul has said, my Suzuki had an ally prop. It was severely dinked so I looked into a replacement.
Peter B (Paul B's father) had a stainless prop on his outboard, and advised me about the slight speed increase, so I dug deep to find the answer
Basically from what I remember, The ally props, although a good all rounder and cheaper than the stainless are somewhat susceptible to flex when under speed/load.
The stainless steel props wont flex like the ally, they give a cleaner cut into the water and a far better grip on exit. A standard sized swap to stainless in my opinion is a worthy upgrade, you'll immediately notice a drop in vibration and you should see an increase in top end speed.
I went up a pitch as my WOT (Wide Open Throttle) reading allowed the drop in rpm whilst staying in the manufactures advised spec.
The advisory figures are 1" further forward per inch increase in propeller pitch per revolution. So in theory, Two props of the same diameter.... a prop with a pitch of 10 will advance your boat one inch further per prop revolution apposed to a prop with a pitch of nine.
You will loose approx. 200rpm per pitch increase or gain 200rpm at WOT opposite if going down a pitch
A lower pitch will give you a faster hole shot, but a loss of top end speed. A higher pitch will give you a better top end speed, but a slower hole shot...
Can you equal the loss of holeshot by replacing the ally prop with a stainless...? TBH, I'd need to try that one out.
I found the Honwave, as all inflatables go sky high if you hole shot, totally impractical in my opinion...
To offer my experiences,
I bought a Solas Saturn Stainless 3x9.25x10. I'd suggest it gave me a 3-4 knots increase over the old standard 3x9.25x9 ally prop. However, paired up with the Stingray Junior, I've lost some of that top end but got a much more satisfying boat. It's up on the plane in no time, at much lower speeds, has deffo helped with the mpg, and no more highly annoying skyward bow under holeshot.
Take a look at the "2 Go To Play" thread and see the difference in how the two Honwaves with the same outboards ride completely differently. Yes my 3.8ie is slightly longer and wider, but the difference is dramatic in slight chop with the Stingray hydrofoil. A much more pleasant ride, no pointing to the sky, nowhere near as much bounce, on a whole.... A lot better !
Here's how it looks...
Figures & Speed....
Honwave (Floppy Floor) T38ie weighs in at 48kg
Suzuki DF15 @ 44KG
Lightweight Me @ 85KG + Whatever heavy gear I'm wearing
Fuel aboard, Anchor, etc... maybe 20KG
Top ever speed registered...
23.4 knots via Navionics GPS, Somewhere between Lismore to Benderloch (West Coast of Scotland) Hope that helps, and I haven't sent you to sleep
Martin
F-RibsAndSibs.Com....
Because it's a big old WWworld out there
Because it's a big old WWworld out there
-
stigoftd
- Active Member
- Posts: 49
- Joined: 12 Aug 2015, 22:00
- Boat Make: tohatsu 4mtr rib. 2.8 sib
- Outboard: suzuki 30
mariner 15 - Location: devon
- Has thanked: 4 times
- Been thanked: 3 times
Re: Prop Material Specifically for Small Outboards
Have you just answered your own op ??
you have a ss prop ? and doel fins ? so what is the question you are looking for answers ? as ime lost
you have a ss prop ? and doel fins ? so what is the question you are looking for answers ? as ime lost
-
Martin
- Supporting Member
- Posts: 5789
- Joined: 30 Dec 2014, 13:05
- Boat Make: F-Rib 3.75 - Special
- Outboard: Suzuki Smoker DT9 (1978) , Suzuki DF20 efi
- MMSI Number: 123456789
- Location: Huddersfield - West Yorkshire
- Has thanked: 1416 times
- Been thanked: 782 times
- Contact:
Re: Prop Material Specifically for Small Outboards
The O/P was 9-R, asking for personal experiences ...stigoftd wrote:Have you just answered your own op ??
you have a ss prop ? and doel fins ? so what is the question you are looking for answers ? as ime lost
9-R wrote:I know - not again!I'm not looking for general answers but specifics from experience. Not from what others have said or assumed but strictly from experiences from anyone who has tried and tested between Aluminum vs Stainless Steel. Not looking at impact, repair feasibility or wear resistance, only performance differences.
With recent changes, I'm finally getting my engine and boat combo tweaked and will finalize the best prop pitch in aluminum for the setup. I want a general performance balance between hole shot and top speed. Once done, and I know the best pitch for aluminum, I'd like to purchase a stainless steel version. My question is whether or not I should stay with the same pitch once I change over to steel as it applies to small outboard engines?
F-RibsAndSibs.Com....
Because it's a big old WWworld out there
Because it's a big old WWworld out there
-
Martin
- Supporting Member
- Posts: 5789
- Joined: 30 Dec 2014, 13:05
- Boat Make: F-Rib 3.75 - Special
- Outboard: Suzuki Smoker DT9 (1978) , Suzuki DF20 efi
- MMSI Number: 123456789
- Location: Huddersfield - West Yorkshire
- Has thanked: 1416 times
- Been thanked: 782 times
- Contact:
Re: Prop Material Specifically for Small Outboards
stigoftd wrote:Sorry that will be me having a dumb ass moment
It doesn't help, but enough of them gives you an excuse lol..
F-RibsAndSibs.Com....
Because it's a big old WWworld out there
Because it's a big old WWworld out there
-
Andy B
- Mega Poster, I Really Need To Get Out More !
- Posts: 1825
- Joined: 03 Sep 2015, 17:10
- Location: lost in space
- Has thanked: 78 times
- Been thanked: 252 times
Re: Prop Material Specifically for Small Outboards
Well that's the theoryMartin wrote:a prop with a pitch of 10 will advance your boat one inch further per prop revolution apposed to a prop with a pitch of nine.
But it real life you have to factor in the % of slip.
