Steering system
-
Speedo
- Active Member
- Posts: 55
- Joined: 25 Jul 2017, 04:53
- Boat Make: Honwave T32
- Outboard: Johnson 5hp 2 stroke
- MMSI Number: 10
- Location: Kent
- Has thanked: 1 time
- Been thanked: 3 times
Steering system
Has anyone found/made a steering system that works on a Honwave T32?
There are a few on google for other boats (in the US) which seem to lay across and fix to the tubes, with the cables running along the tubes.
I would love to get a similar set up for my SIB (if it wasn't silly money!!)
There are a few on google for other boats (in the US) which seem to lay across and fix to the tubes, with the cables running along the tubes.
I would love to get a similar set up for my SIB (if it wasn't silly money!!)
-
Andy B
- Mega Poster, I Really Need To Get Out More !
- Posts: 1825
- Joined: 03 Sep 2015, 17:10
- Location: lost in space
- Has thanked: 78 times
- Been thanked: 252 times
Re: Steering system
The T32 has a V floor so fixing anything isn't possible.

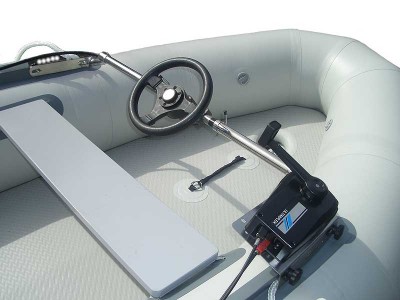

Your only real option would be something like this.
Your only real option would be something like this.
-
Speedo
- Active Member
- Posts: 55
- Joined: 25 Jul 2017, 04:53
- Boat Make: Honwave T32
- Outboard: Johnson 5hp 2 stroke
- MMSI Number: 10
- Location: Kent
- Has thanked: 1 time
- Been thanked: 3 times
Re: Steering system
That looks brilliant Andy, not sure how it fixes on but it seems it would do the job!
Have you seen anywhere that sells them?
Have you seen anywhere that sells them?
-
Martin
- Supporting Member
- Posts: 5789
- Joined: 30 Dec 2014, 13:05
- Boat Make: F-Rib 3.75 - Special
- Outboard: Suzuki Smoker DT9 (1978) , Suzuki DF20 efi
- MMSI Number: 123456789
- Location: Huddersfield - West Yorkshire
- Has thanked: 1416 times
- Been thanked: 782 times
- Contact:
Re: Steering system
I think I’ve seen similar on force 4 but they’re always mega money.
F-RibsAndSibs.Com....
Because it's a big old WWworld out there
Because it's a big old WWworld out there
-
PaulR
- Active Member
- Posts: 133
- Joined: 05 Nov 2017, 14:30
- Boat Make: FRib 360
- Outboard: Tohatsu 20hp
- MMSI Number: 10
- Location: Scunthorpe
- Has thanked: 37 times
- Been thanked: 23 times
Re: Steering system
http://www.excel-inflatables.co.uk/boat ... ng-kit.jpg
Hope this link works for you.
Hope this link works for you.
-
awmaster10
- I'm New
- Posts: 22
- Joined: 21 Jan 2018, 16:14
- Boat Make: Bris BSK430
- Outboard: Tohatsu 9.8hp 2Stroke
- MMSI Number: 10
- Location: Chesapeake Bay
- Has thanked: 0
- Been thanked: 5 times
Re: Steering system

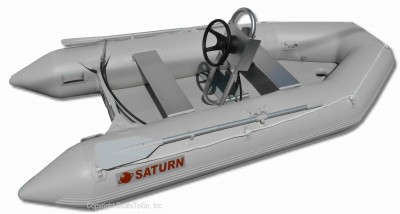

Here is another option. Not sure if it is available in UK but it only runs $70 USD
http://www.boatstogo.com/central-consol ... e-boat.asp
Just need a wheel and cable kit, maybe another $100 USD
I will try to search for the same product available in UK though, hope everything works out!
http://www.boatstogo.com/central-consol ... e-boat.asp
Just need a wheel and cable kit, maybe another $100 USD
I will try to search for the same product available in UK though, hope everything works out!
-
Si Crowe
- Veteran Member
- Posts: 585
- Joined: 24 Aug 2015, 15:29
- Boat Make: DS110, Seago 240 Airdeck
- Outboard: 2xPerkins Sabres 225HP, 5HP Mariner 2Stroke
- Location: York
- Has thanked: 180 times
- Been thanked: 115 times
Re: Steering system
If you want steering, you really want a vessel with a hard floor. Ideally you want either a wood/ally floor sib but a rib would be best. There would be too much flex in any form of airdeck boat to really have a workable system (aside from the sponson mounted one already posted at the top of the thread which mounts to a seam with heavy duty eyelets already fixed to the sponsons). Steering allows you to go faster in rougher conditions due to less steering feedback and more accuracy plus having weight further forward. In addition a steering system takes up alot of room inside the boat.

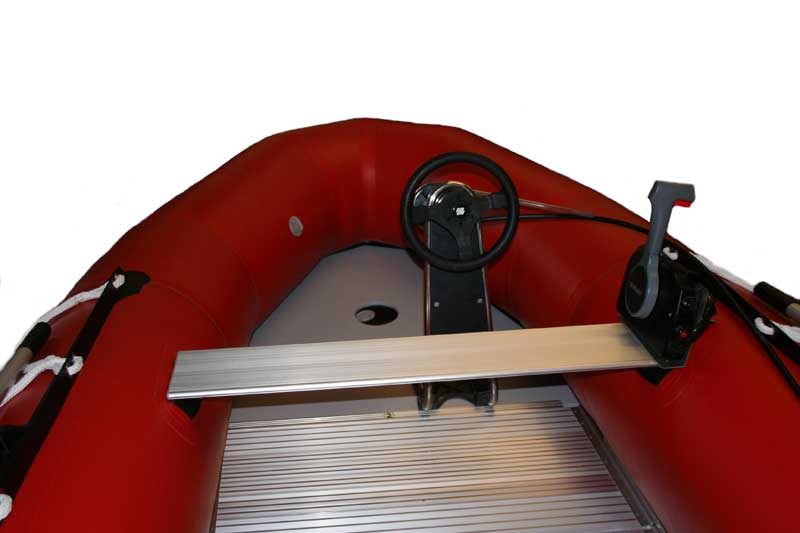

or, if you have two bench seats on sliders, you could mount a steering binacle on the forward bench seat and adjust the distance between the seats to get the right reach...
or just saw this...in an airdeck...
or just saw this...in an airdeck...
If it has t*ts, tyres or floats......it's gonna cost ya!
-
mm289
- Active Member
- Posts: 105
- Joined: 08 May 2018, 19:15
- MMSI Number: 10
- Location: Kent
- Has thanked: 15 times
- Been thanked: 23 times
Re: Steering system
If you want some pics of the seam mounted ones mentioned above, there is a T32 for sale on e-bay atm with one fitted with some decent detailed pictures. E-bay item 183245992416
Cheers,
MM
Cheers,
MM
