Homemade Bow Dolly

Post by Cliff » 21 May 2018, 15:08

Thought I'd better make life a bit easier, after a trip to the local tip (sorry, recycling centre) I managed to recycle a couple of wheels someone was chucking away. Looked Ideal for a dolly, so I had a root round in my junk and found all the other bits I needed....Fire up the Quattro! ....I mean Welder.

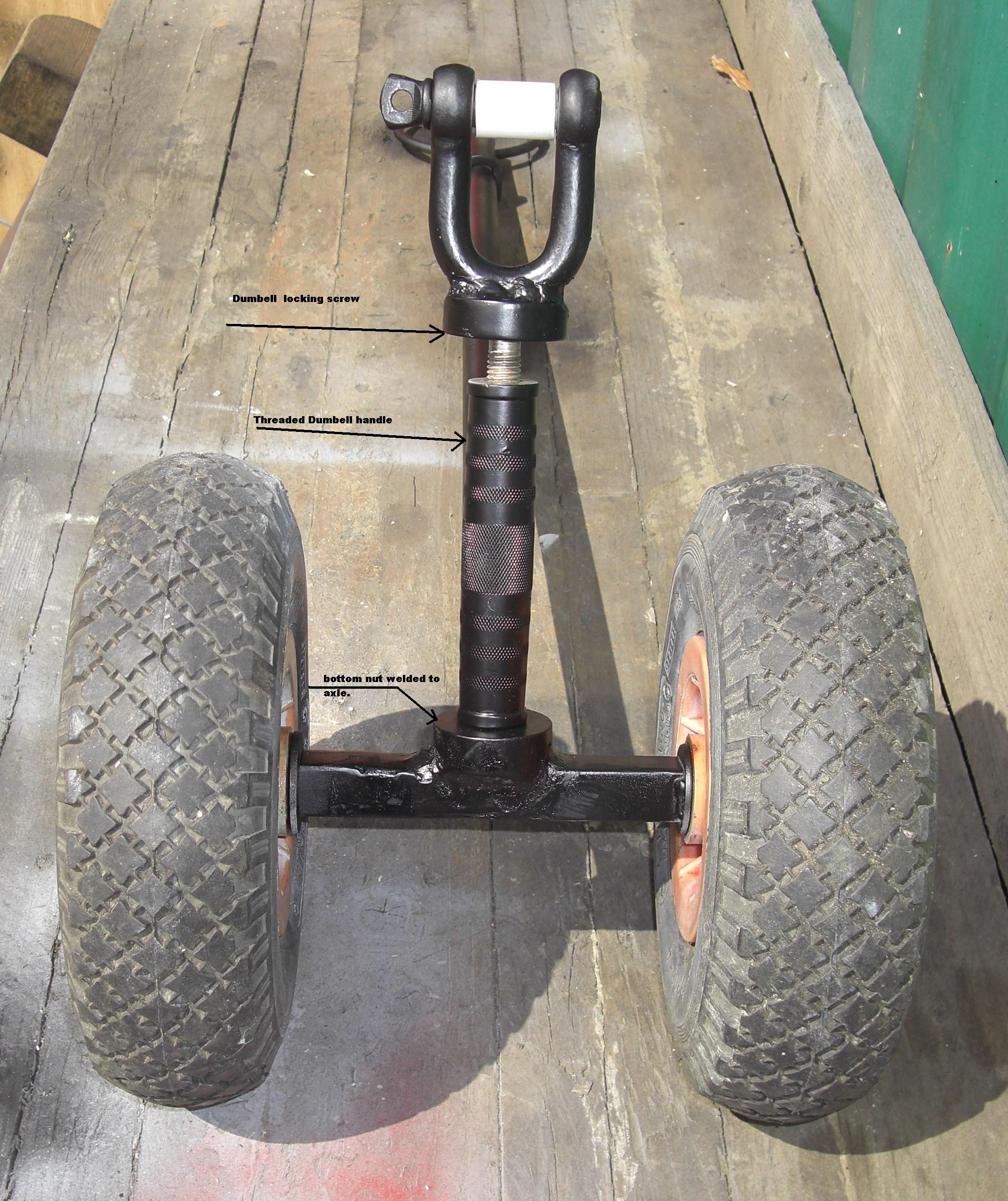

Materials: 2 wheels - Steel Box section with axle through- Dumbbell with locking end screws. Steel tent pole, shackle and other bits and pieces.

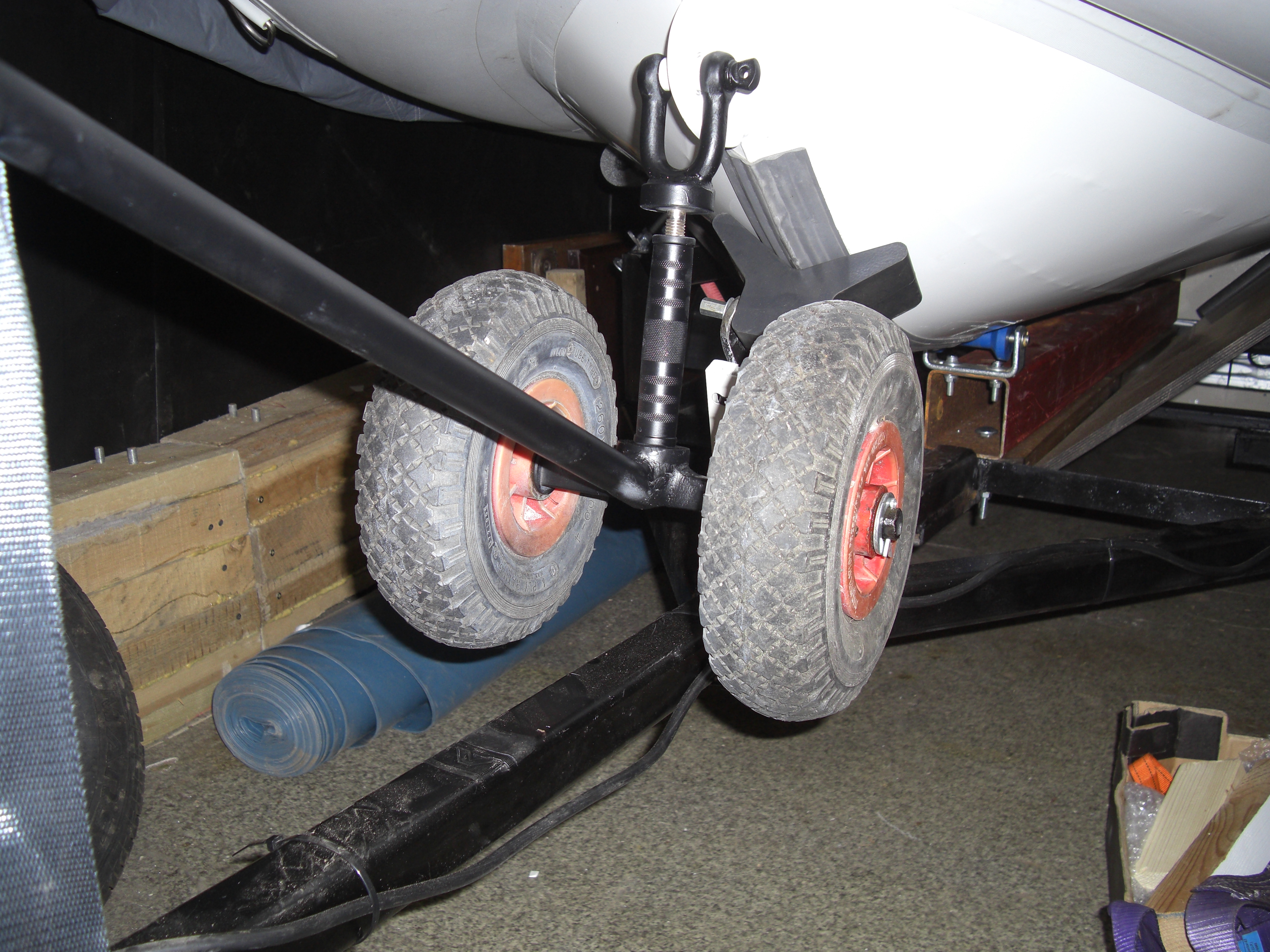

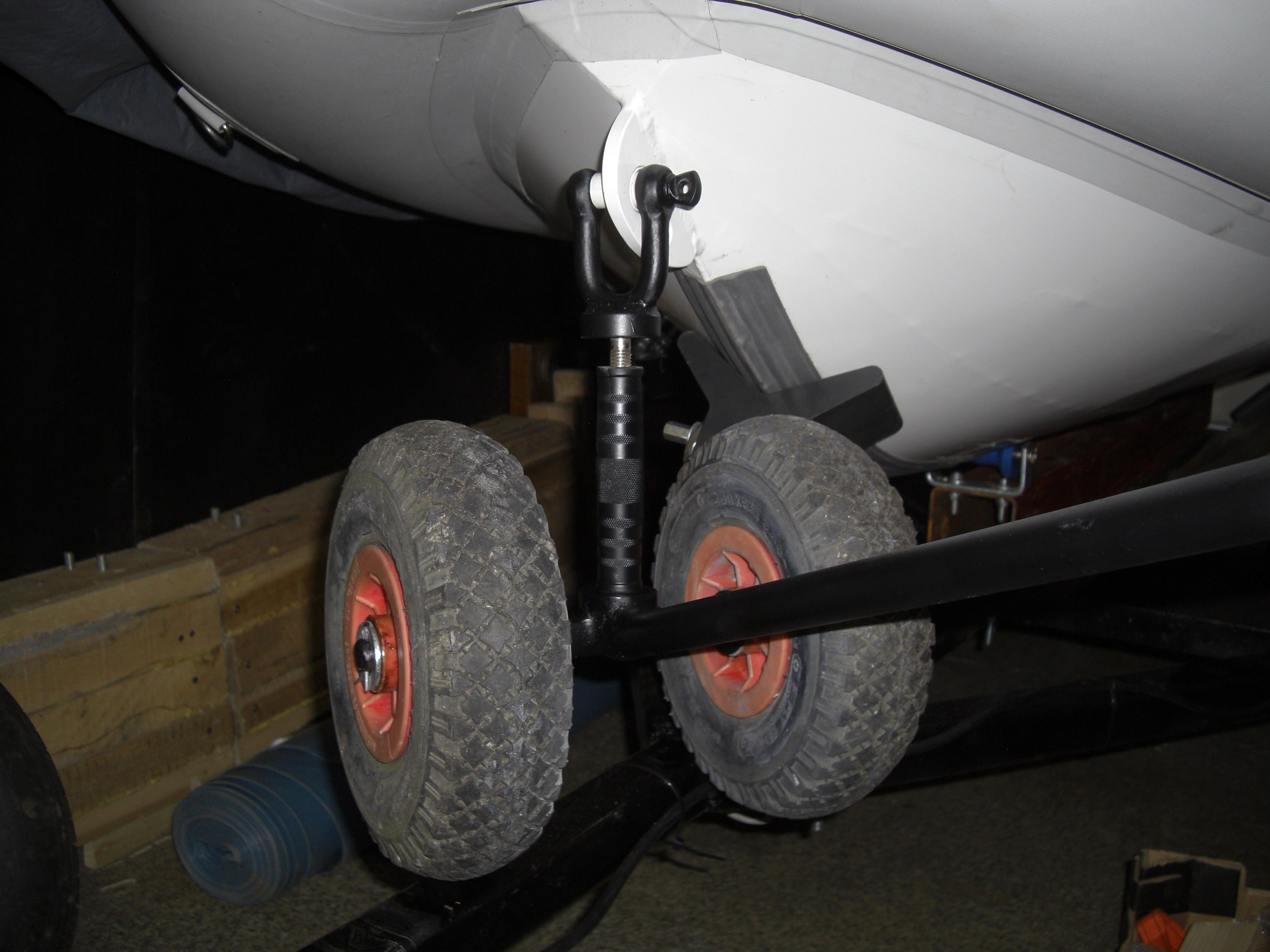

It's adjustable in height with the screw threads top and bottom, plus it will revolve to steer., and might even be capable of off road slow towing on the back of the truck, not tried that yet!

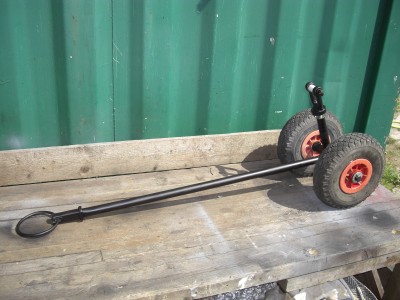

Bow Dolly 001.JPG
Bow Dolly 002.JPG
http://f-ribsandsibs.com/download/file.php?mode=view&id=8589&sid=a0bde8e6894d4063fe6251f0487a995f
Bow Dolly 004.JPG
Bow Dolly 005.JPG
Top
Stray
Super Poster
Posts: 817
Joined: 10 Jun 2015, 10:52
Location: Oop North.
Has thanked: 34 times
Been thanked: 99 times

Re: Homemade Bow Dolly

Post by Stray » 21 May 2018, 15:20

Nice job. You've obviously got a better quality of tip to me.
These users thanked the author Stray for the post (total 2):
Cliff (21 May 2018, 16:58) • BigMac (06 Sep 2018, 12:30)
Top
User avatar
The Hobbit England
Supporting Member
Posts: 724
Joined: 10 Jul 2017, 15:03
Boat Make: Honwave T38 IE2
Outboard: 1985 Yamaha 2 stroke 15 D
MMSI Number: 235904468
Location: Farnborough Hampshire
Has thanked: 100 times
Been thanked: 174 times

Re: Homemade Bow Dolly

Post by The Hobbit » 21 May 2018, 16:43

Been thinking of something similar for mine. Twisted my knee on the WWA just gone :cheers great pics
I'm not really a Hobbit, just look like one. Real name is "Andy".

All my movies in one place:- https://www.youtube.com/channel/UCvarVX ... subscriber
Top
User avatar
Cliff England
Veteran Member
Posts: 321
Joined: 31 Dec 2017, 11:47
Boat Make: Highfield CL310 Rib
Outboard: Tohatsu 20hp efi
Demon 5.2hp 2 smoke
Location: Sunny Wigan
Has thanked: 95 times
Been thanked: 66 times

Re: Homemade Bow Dolly

Post by Cliff » 21 May 2018, 17:32

The Hobbit wrote:Been thinking of something similar for mine. Twisted my knee on the WWA just gone :cheers great pics
Sorry to hear about the knee, hope it's better soon, as to the dolly, any large nut and bolt welded to the upstand and the axle will give you a swivel joint.
:waterski
Top
bun Scotland
Advanced Member
Posts: 185
Joined: 14 May 2018, 08:46
Boat Make: boatworld 330 v floor
Outboard: tohatsu 4stroke 6hp
MMSI Number: 10
Location: Edinburgh
Has thanked: 1 time
Been thanked: 20 times

Re: Homemade Bow Dolly

Post by bun » 29 Oct 2022, 17:32

nice job mate
