Outboard Stand Home made

Post by Cliff » 11 Mar 2018, 16:05

Following Pritch's post about boat storage and moving his OB with an engine stand. I decided to make one for my new beauty :P I don't mind admitting it's a bit rough and ready, but it does the job, and cost me nowt other than a few hours and rooting about in the container for the bits I put the castors on the handles, in case I ever get a vehicle that I can get it into. As it is, It won't fit in my Disco, because the LPG tank is in the back. So I'll be making a carrier for the back of the truck for when I'm towing the caravan... I haven't patented this. And yes, the handles are rolling pins :rofl

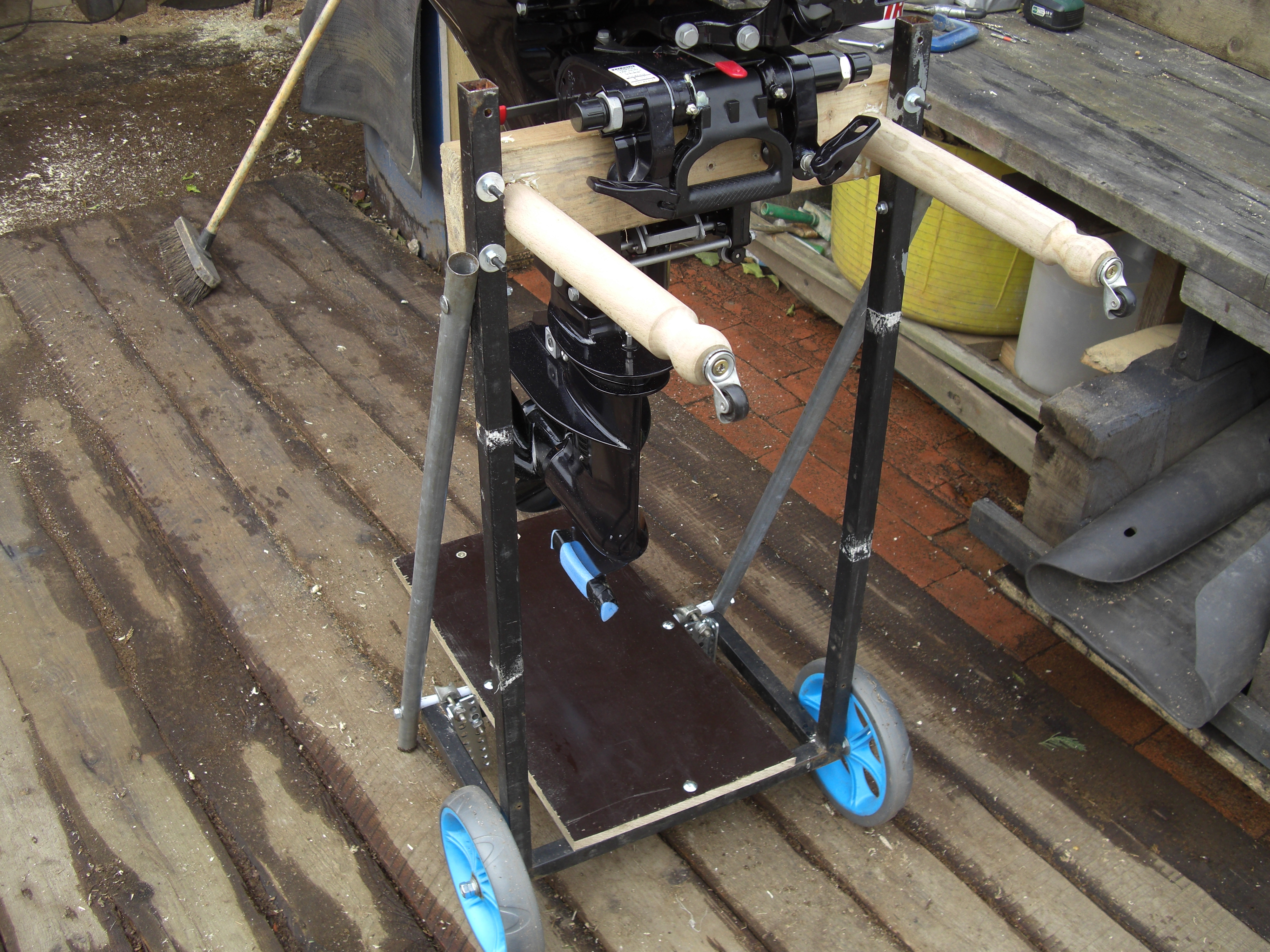

Engine stand 005.JPG

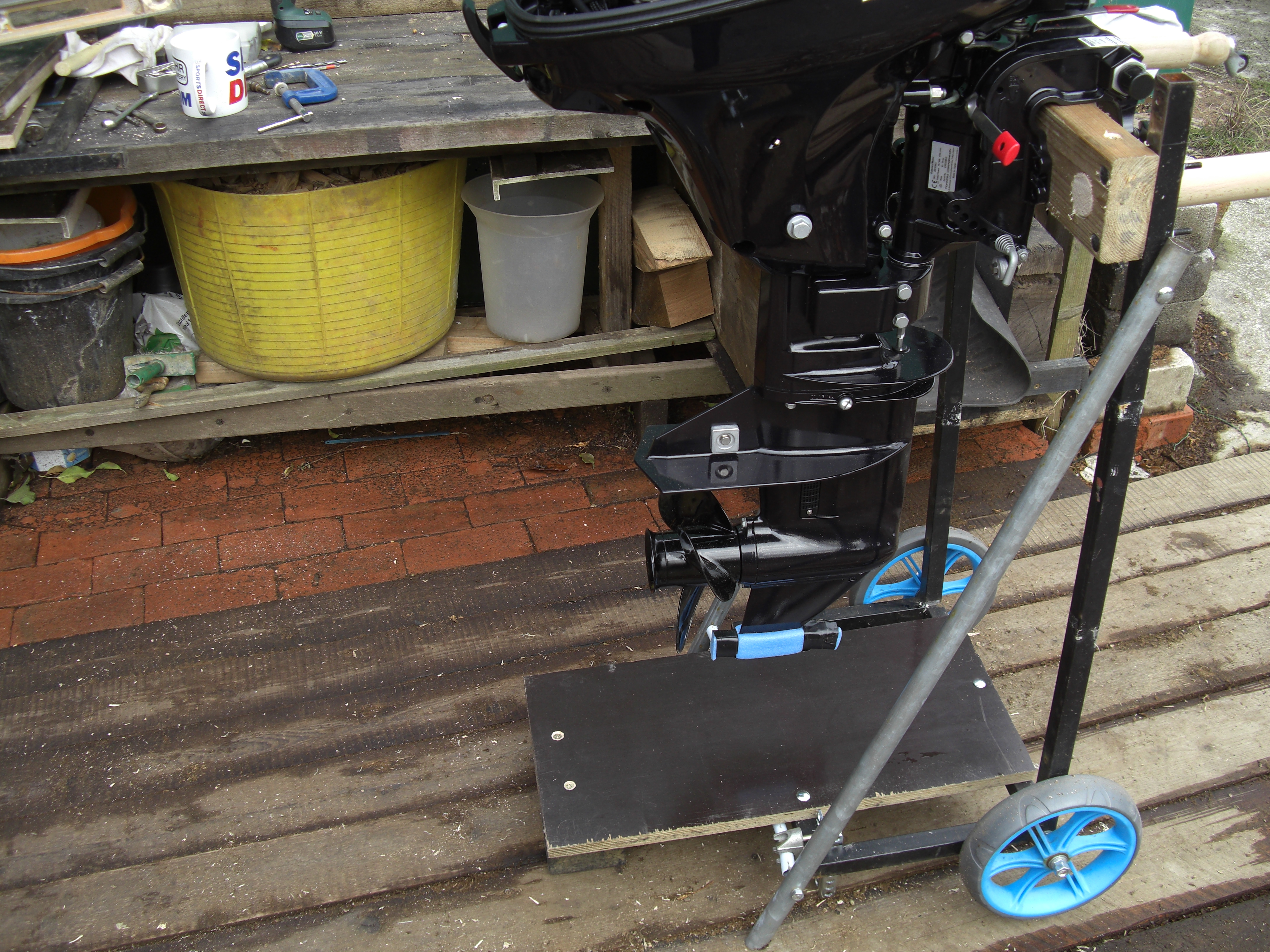

Engine stand 002.JPG
Engine stand 003.JPG
:waterski
96% of people are basically good, it's the 4% that f*ck up the world

User avatar
harrison
Supporting Member
Posts: 128
Joined: 18 Mar 2015, 17:14
Boat Make: XS500, Bic Sportyak
Outboard: Mariner 60, Mariner 3.5, Honda 2.3
Location: Midlands & Up North
Has thanked: 9 times
Been thanked: 33 times

Re: Outboard Stand Home made

Post by harrison » 11 Mar 2018, 19:04

Nice one Cliff,
Oooh! a container, impressive. Is that your man cave?
Trolley looks neat. Motor looks ace. As a former Suzuki 20 efi owner will be interested to hear how this performs.
These users thanked the author harrison for the post:
Cliff (11 Mar 2018, 20:07)

User avatar
mattswan2512
Mega Poster, I Really Need To Get Out More !
Posts: 1755
Joined: 13 Jul 2015, 10:34
Boat Make: F-Rib 330
Outboard: Mercury 15hp ss 2 smoker.
Location: Sunny southampton
Has thanked: 95 times
Been thanked: 117 times

Re: Outboard Stand Home made

Post by mattswan2512 » 11 Mar 2018, 19:20

Nicely made and for nowt love it.
These users thanked the author mattswan2512 for the post:
Cliff (11 Mar 2018, 19:55)
Life is like a chocolate bar........
If you hold onto it for too long u get covered in sh☆t so......
live a life you will remember, not a life full of untested dreams.

warder54
Supporting Member
Posts: 318
Joined: 12 Aug 2016, 08:32
Boat Make: F-Rib 360 + Smartwave 480
Outboard: Mar 15 2 st
Yam 60 efi
Toh 5 4 st
Toh 20 efi
MMSI Number: 10
Location: Montrose -Scotland
Has thanked: 12 times
Been thanked: 70 times

Re: Outboard Stand Home made

Post by warder54 » 11 Mar 2018, 19:38

Nice job! Remember that the motor needs to be laid tiller side down (I have the same motor - just finished running in today on a trip from Broughty Ferry to Perth and return) They go very well and throttle response is superb.
These users thanked the author warder54 for the post:
Cliff (11 Mar 2018, 19:55)
Why am I here - I should be in my boat fishing!!
Mike Elliott

pritch
Advanced Member
Posts: 224
Joined: 10 Aug 2017, 21:51
Boat Make: BISON 390
Outboard: Tohatsu 20hp
MMSI Number: 10
Location: Staffordshire
Has thanked: 56 times
Been thanked: 26 times

Re: Outboard Stand Home made

Post by pritch » 11 Mar 2018, 19:58

I was looking at making one today and I was struggling to think of a way to mount the wheels near the handles.
For some reason the rolling pin idea didn't cross my mind :lol:
Looks like it does the trick though :thumbsup

User avatar
Cliff
Advanced Member
Posts: 204
Joined: 31 Dec 2017, 11:47
Boat Make: Highfield CL310 Rib
Outboard: tohatsu 20hp efi
Location: Sunny Wigan
Has thanked: 77 times
Been thanked: 37 times
Contact:

Re: Outboard Stand Home made

Post by Cliff » 11 Mar 2018, 20:03

warder54 wrote:Nice job! Remember that the motor needs to be laid tiller side down (I have the same motor - just finished running in today on a trip from Broughty Ferry to Perth and return) They go very well and throttle response is superb.
Doh! I remembered just before I was going to lay it down to try the casters, because of the length of the handles, it would probably have been okay, but i'm not about to try it, I'm only planning to move it upright. Glad to hear you're running in went well, now get it serviced and open up that throttle.... :waterski
96% of people are basically good, it's the 4% that f*ck up the world

User avatar
Paul
Supporting Member
Posts: 2934
Joined: 30 Dec 2014, 21:46
Boat Make: Mercury Ocean Runner 420
Outboard: Mariner F40ELPT, 3.5 Tohatsu smoker
MMSI Number: 235915479
Location: Bracknell, Berkshire
Has thanked: 438 times
Been thanked: 316 times

Re: Outboard Stand Home made

Post by Paul » 11 Mar 2018, 21:45

Cliff wrote:
warder54 wrote:Nice job! Remember that the motor needs to be laid tiller side down (I have the same motor)
Doh! I remembered just before I was going to lay it down to try the casters, because of the length of the handles, it would probably have been okay
I reckon you'll be ok on the tilt angle with the height difference between the main wheels and caster wheels judging from the diagram specs :idea:
Screen Shot 2018-03-11 at 21.38.27.png
These users thanked the author Paul for the post:
Cliff (12 Mar 2018, 09:56)
I walked through the door marked 'EXIT' and life is now good!
