SIB Trolley legs (extended)

Post by nala » 13 Sep 2017, 19:21

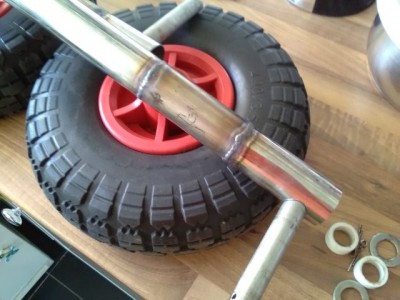

IMG_20170913_174522 (Small).jpg
IMG_20170913_174532 (Small).jpg
I own a Hydro-Force Mirovia 3.3m air deck and a Tohatsu 9.8 hp 2st (previously a Parsun 6hp)

I didn't want to drill the brackets through the rubber at the bottom of the transom....

Nor did I want the nylok nuts on the other (inside) of the transom to come into contact with the air deck.

I felt the movement and motion would damage and could puncture through the air deck.

And, as they were, having fitted them on found the wheels were touching the underside.

Again, a possibility of wearing through as the wheels rotated with the weight of the kit in the sib.

Calculated that 75mm/3" would be ample and give enough clearance between the wheels and hull.

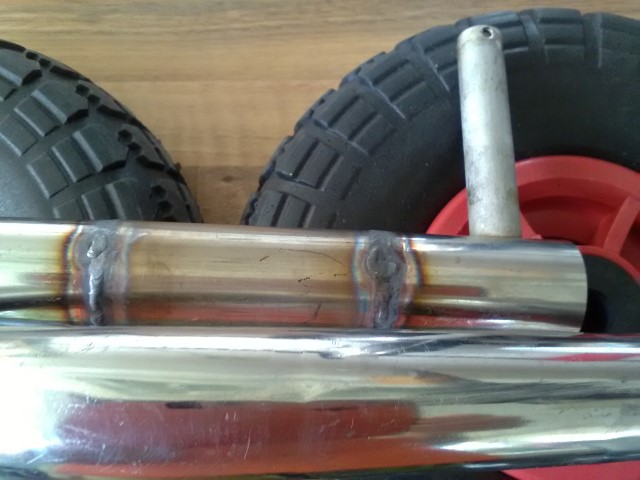

I found a guy that constructs stainless steel exhausts locally and asked if he would mind extending the legs .

Cost £20 :) so just need to give them a trial now :)
These users thanked the author nala for the post:
Paul (13 Sep 2017, 20:33)

User avatar
Paul
Supporting Member
Posts: 2931
Joined: 30 Dec 2014, 21:46
Boat Make: Mercury Ocean Runner 420
Outboard: Mariner F40ELPT, 3.5 Tohatsu smoker
MMSI Number: 235915479
Location: Bracknell, Berkshire
Has thanked: 437 times
Been thanked: 316 times

Re: SIB Trolley legs (extended)

Post by Paul » 13 Sep 2017, 20:37

Great wee modification there mate 8-)
Might be the answer for those that would like the OB down whilst coming ashore with the transom wheels down :idea: as most standard length wheel brackets are too short to allow this practice and you clobber the skeg :(
:cheers
These users thanked the author Paul for the post:
nala (15 Sep 2017, 18:35)
I walked through the door marked 'EXIT' and life is now good!

User avatar
Martin
Supporting Member
Posts: 3949
Joined: 30 Dec 2014, 13:05
Boat Make: F-Rib 3.75 - Special
Outboard: Suzuki Smoker DT9 (1978) , Suzuki DF20 efi
MMSI Number: 123456789
Location: Huddersfield - West Yorksire
Has thanked: 795 times
Been thanked: 358 times
Contact:

Re: SIB Trolley legs (extended)

Post by Martin » 13 Sep 2017, 21:33

Great mod there, I recently purchased some extended transom wheels for my FRIB, although they are stainless steel the build/weld quality was terrible.
I set too with the grinder to shorten the outrigger/axle tube so as to safeguard the outboard on full lock only to find the axle tube insufficiantly secured.
Just got to get them re-welded and all should be good.

Hope yours work well for you :IANW
These users thanked the author Martin for the post:
nala (15 Sep 2017, 18:35)
F-RibsAndSibs.Com.... :whistle
Because it's a big old WWworld out there :mrgreen:
