Coming apart at the seams

Post by ChrisParish » 08 Jul 2018, 13:48

Hi folks,

I went out today on my Zodiac 310. Had a great day, caught a fish and made it to the Isle of Wight.

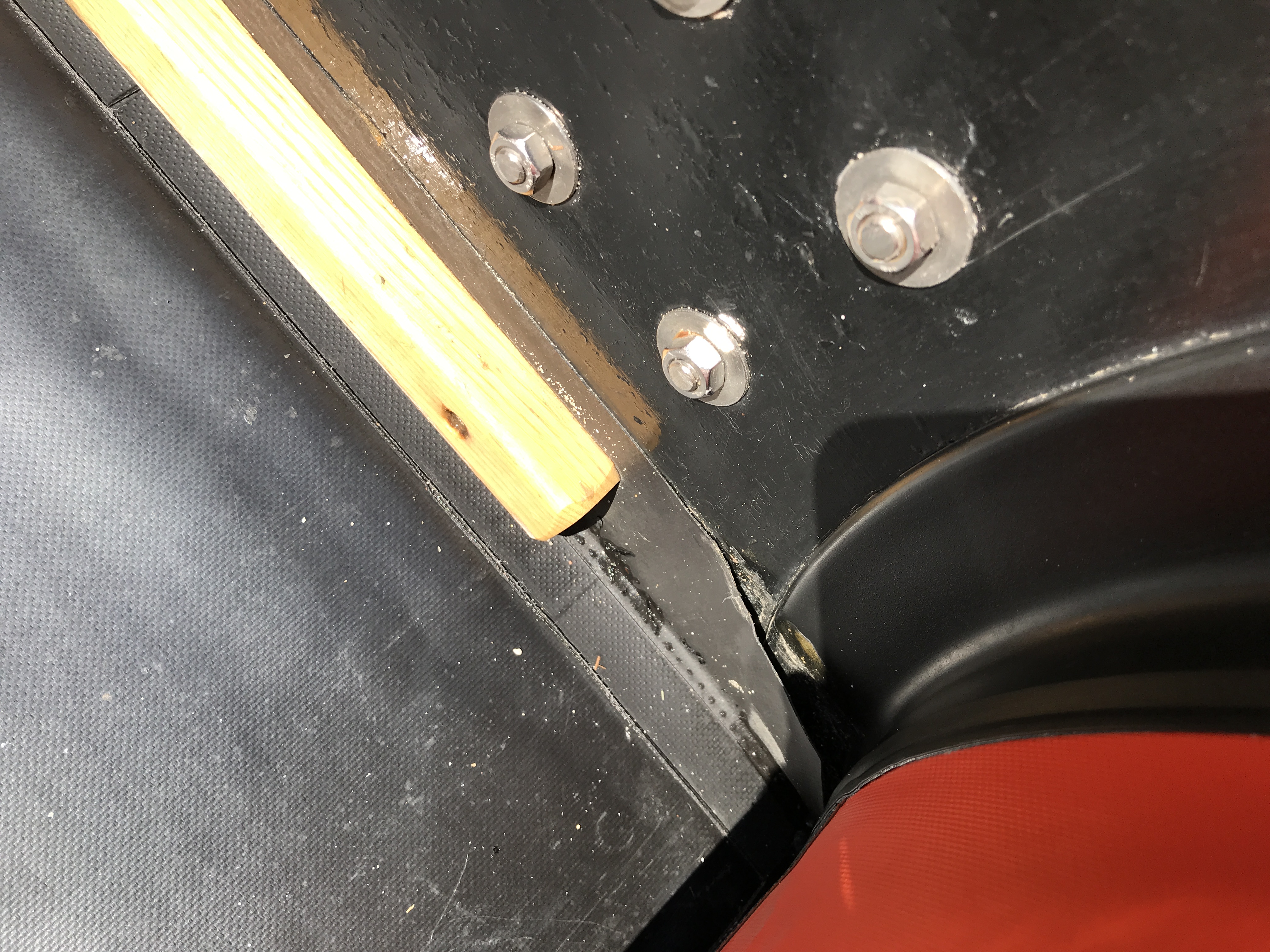

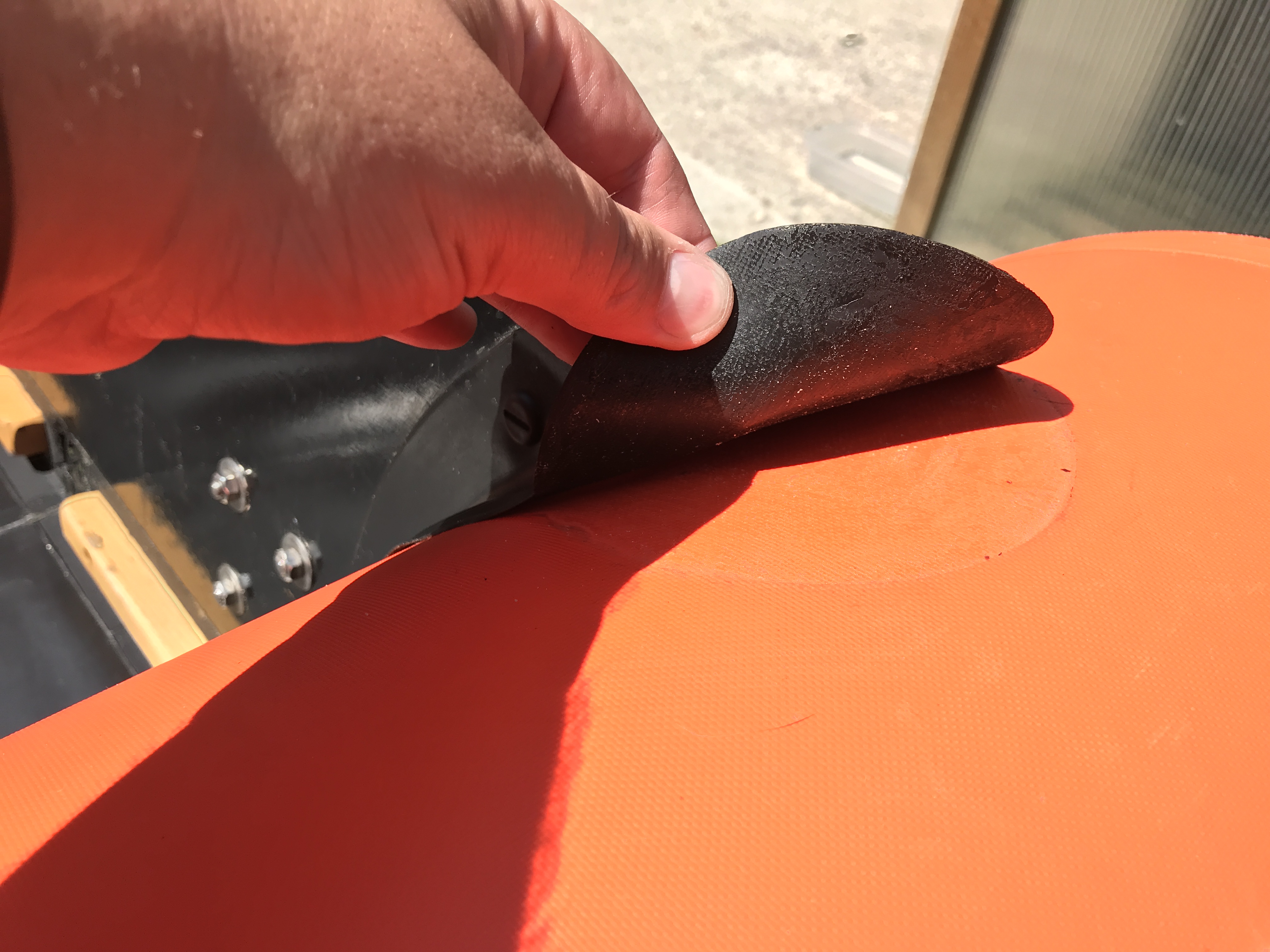

Upon returning, however, I discovered that my lovely old boat was coming apart at the seams.
Any suggestions as how to best tackle this repair?
Not a complete idiot - some parts are missing.

User avatar
Andy B
Supporting Member
Posts: 1678
Joined: 03 Sep 2015, 17:10
Boat Make: Zodiac 380
Outboard: Mariner 9.9hp/Mariner 3.3hp
Location: New forest, Hampshire
Has thanked: 71 times
Been thanked: 225 times

Re: Coming apart at the seams

Post by Andy B » 08 Jul 2018, 17:59

Unfortunately Chris, glue failure on older Zodiac's is a well documented problem.
I'm not saying it can't be repaired, but you'll probably end up chasing the problem all the way round the boat!

It may be that this old girl has had her day.... :Confused
SOLENT
Waveline 2.3m/3.3hp Mariner
Zodiac 380/ Depends on the Day!

User avatar
ChrisParish
Supporting Member
Posts: 130
Joined: 23 May 2018, 15:30
Boat Make: Zodiac c310
Outboard: Mariner 5hp 2 stroke | Mariner 9.9hp Four Stroke
MMSI Number: 235916094
Location: Southampton
Has thanked: 11 times
Been thanked: 26 times

Re: Coming apart at the seams

Post by ChrisParish » 08 Jul 2018, 18:03

I have a rotten feeling you are right.

However, if today was it’s Swan Song we had an ace morning - I even caught my first ever fish from a boat.

I think I will try and repair it, remove the transom and re-install. I have nothing to loose as it’s a right off otherwise.
These users thanked the author ChrisParish for the post:
Andy B (08 Jul 2018, 18:05)
Not a complete idiot - some parts are missing.

User avatar
Andy B
Supporting Member
Posts: 1678
Joined: 03 Sep 2015, 17:10
Boat Make: Zodiac 380
Outboard: Mariner 9.9hp/Mariner 3.3hp
Location: New forest, Hampshire
Has thanked: 71 times
Been thanked: 225 times

Re: Coming apart at the seams

Post by Andy B » 08 Jul 2018, 18:06

ChrisParish wrote:
08 Jul 2018, 18:03
I have nothing to loose as it’s a right off otherwise.
Only time, and there are worse ways to spend it other than mucking around with boats. :D
SOLENT
Waveline 2.3m/3.3hp Mariner
Zodiac 380/ Depends on the Day!

User avatar
Pete
Veteran Member
Posts: 336
Joined: 09 Apr 2016, 11:21
Boat Make: Excel Volante 330
Outboard: Yamaha 6 HP 4 Stroke
Location: Manchester
Has thanked: 36 times
Been thanked: 33 times

Re: Coming apart at the seams

Post by Pete » 08 Jul 2018, 21:28

Shame about your boat Chris, but a cracking day catching your first boat caught fish :thumbsup

User avatar
ChrisParish
Supporting Member
Posts: 130
Joined: 23 May 2018, 15:30
Boat Make: Zodiac c310
Outboard: Mariner 5hp 2 stroke | Mariner 9.9hp Four Stroke
MMSI Number: 235916094
Location: Southampton
Has thanked: 11 times
Been thanked: 26 times

Re: Coming apart at the seams

Post by ChrisParish » 08 Jul 2018, 21:34

Pete wrote:
08 Jul 2018, 21:28
Shame about your boat Chris, but a cracking day catching your first boat caught fish :thumbsup
Yeah, I’m a bit annoyed but my new T38 is due any day now! :D

Going to get the Zodiac fixed up and give it to my brother.
Not a complete idiot - some parts are missing.

User avatar
Martin
Supporting Member
Posts: 4029
Joined: 30 Dec 2014, 13:05
Boat Make: F-Rib 3.75 - Special
Outboard: Suzuki Smoker DT9 (1978) , Suzuki DF20 efi
MMSI Number: 123456789
Location: Huddersfield - West Yorksire
Has thanked: 817 times
Been thanked: 373 times
Contact:

Re: Coming apart at the seams

Post by Martin » 08 Jul 2018, 21:40

Sad news chris as she's a great looking little boat.
As Andy rightly says, We've all heard many a tails unfortunately of the older boats letting go at the seams.

Great to see you got out ti the IOW though and caught a fishy too :fishing

Martin :cheers
F-RibsAndSibs.Com.... :whistle
Because it's a big old WWworld out there :mrgreen:

fastasfox
Newish Member, But I Like It Here
Posts: 28
Joined: 04 May 2015, 16:33
Has thanked: 0
Been thanked: 0

Re: Coming apart at the seams

Post by fastasfox » 12 Jul 2018, 20:15

I had an old 2.5m zodiac with this problem. I have been desperately been searching for a video I once watched on youtube of this kind of repair (it was an American fella with proper rubbish music) but the instruction was spot on.
Go to your local Chandler and ask for Hypalon glue. peel the tubes away from the transom and clean all debris off it then dry. Using Acetone (nail polish remover...the stinky one) clean off all old glue, I found using a brillo pad helped. Then scuff up the surface to be glued (key). Make sure your tubes are topped up with air. Coat the area on the tube to be glued (best to use pen to mark round where the transom touches the tube) coat both the tube and the transom rubber with a layer of glue and let it dry for 1/2 hr or so. repeat these steps until both surfaces have had 4 coats of glue. during the last application let the glue go tacky (touch with back of your nail) fix tube to transom making sure you have good contact then using a ratchet strap all the way round the tubes and transom and tighten it up until you have firm pressure o the joint but don't over tighten. Leave the boat for 2-3 days then release the strap. repeat this process on any seems or fixtures that are coming loose. What have you got to lose? give it a go.

You either have to be Rich or Resourceful....and I aint Rich.

User avatar
ChrisParish
Supporting Member
Posts: 130
Joined: 23 May 2018, 15:30
Boat Make: Zodiac c310
Outboard: Mariner 5hp 2 stroke | Mariner 9.9hp Four Stroke
MMSI Number: 235916094
Location: Southampton
Has thanked: 11 times
Been thanked: 26 times

Re: Coming apart at the seams

Post by ChrisParish » 12 Jul 2018, 21:04

Thanks for the advice. My Dad and I are going to have a crack at fixing it - exactly as you described.
We’ll take photos and let you all know how we get on
